Product Description
Feature Highlights
- Over 3KM Wifi Bridging Distance
- Powerful 15dBi High Gain Antenna
- Dual 1 Gbps Network Ports
- Up To 900 Mbps Real Throughput
- Pre-Paired, No Setup Required
- Instant 1 to 8 Point-to-Multipoint Setup
- Access Point and Bridging Mode Simultaneous Operation
- 12VDC / 48V Active PoE powered
- Horizontal: 60°, Vertical: 30°
- IP65 Weatherproof and 4kV Lightning Protection
The XVR-5HSB-P is the ultimate solution for seamless long-range wireless connectivity, offering reliable performance over distances beyond 3 kilometers. Ideal for outdoor use, this durable bridge supports high-speed 802.11ac 5GHz WiFi with speeds up to 900Mbps (actual throughput, not just data rate) , ensuring smooth data transfer for all your wireless networking needs. For CCTV applications, this unit can stream multiple real-time 30fps 4K IP cameras from over 9000 feet away.

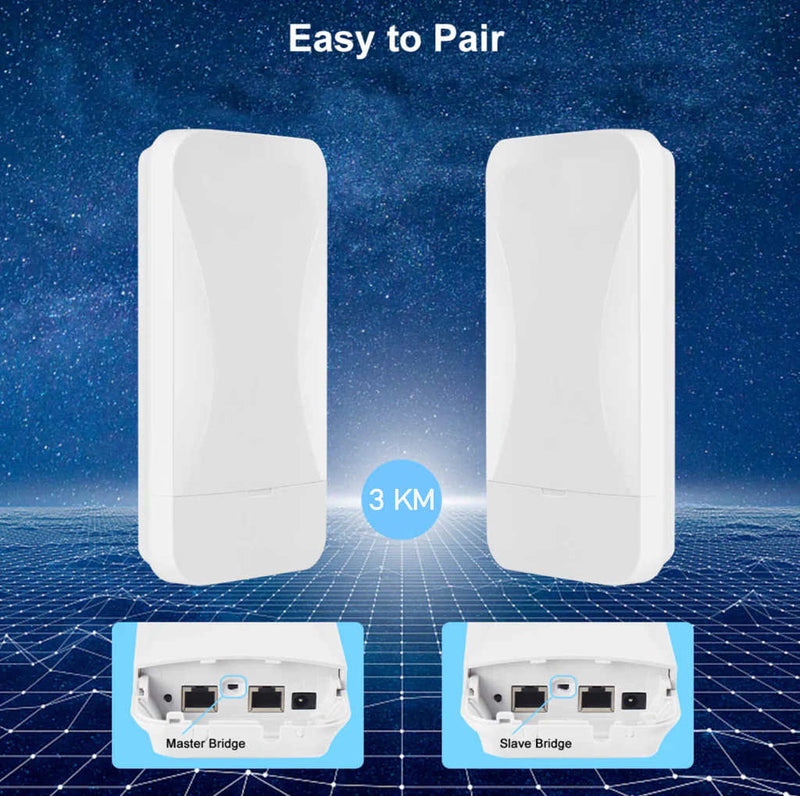

Featuring instant pairing, setup is a breeze, allowing you to quickly establish a secure connection without complicated configurations. These units come pre-paired for point-to-point applications. Point-to-multipoint configuration couldn't be easier. Simply flip the switch to M on the master bridge and flip the switch to S for all the client bridges, then press the reset button for 1 second on all the bridges to have them sync with each other. This unit is even more versatile by supporting access point mode while bridging. This allows you to connect a wired or wireless client device to the XVR-5HSB-P to bridge data across the 5Ghz wireless link. Many WiFi bridges on the market today do not allow wireless devices to access the bridge, but ours does seamlessly.
This unit is also an 802.3af active PoE powered device. Meaning, the bridge will get its power and data through any 802.3af compliant PoE switch with power on pins 1/2+ and 3/6-.
This unit is uncompromised in ensuring versatility and power efficiency. Whether you're extending WiFi to remote areas, providing off-grid 12VDC systems or connecting multiple buildings, this WiFi bridge delivers high-performance results in a rugged, reliable package.
Perfect for business, home, or industrial use, the XVR-5HSB-P brings fast, secure wireless coverage to hard-to-reach areas with ease.
Specifications
| General | |
|---|---|
| Wireless Standard | 802.11 a/n/ac, up to 900 Mbps |
| Memory | 128MB RAM |
| Flash | 16MB |
| Interfaces |
1 × 10/100/1000 Mbps RJ45 WAN Port (48V PoE) 1 × 10/100/1000 Mbps RJ45 LAN Port 1 × Master/Slave Switch 1 × 12V DC Power Input 1 × Reset Button (10s for factory reset, 2s for pairing) |

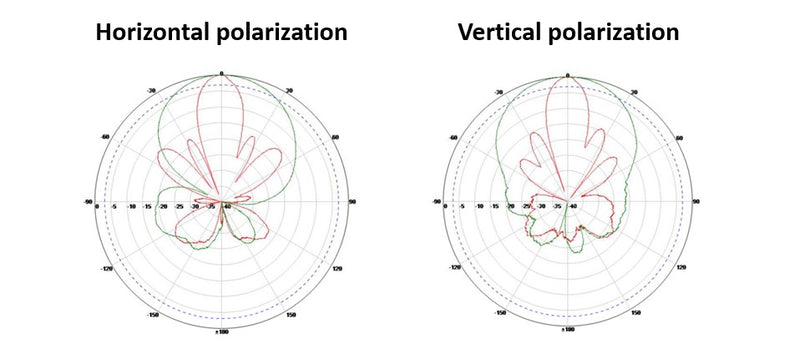

| Antenna | 5.8GHz 15 dBi Dual Polarization High-Gain Directional |

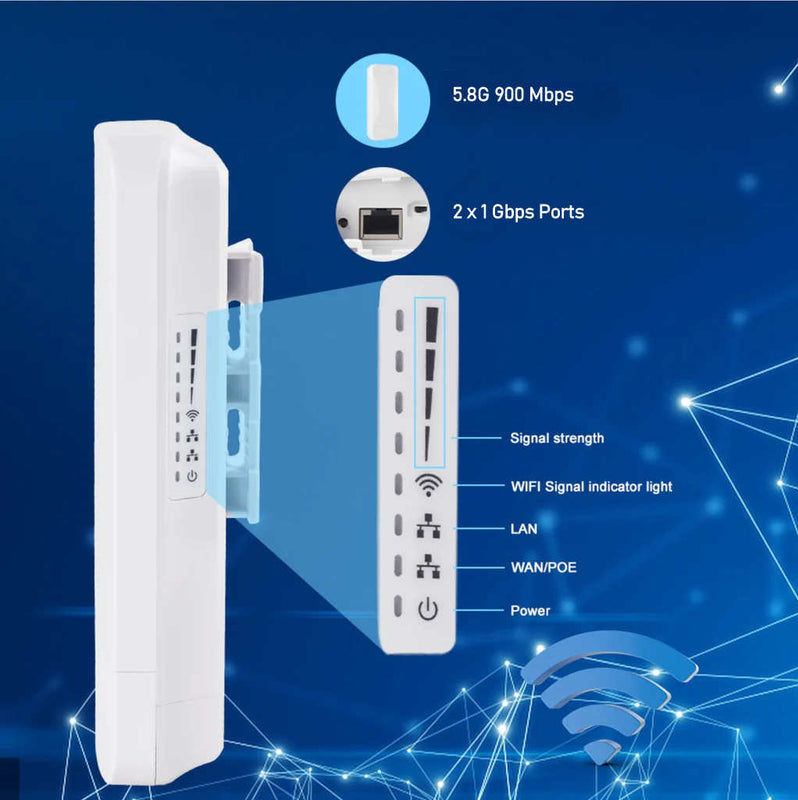

| LED Indicators | SYS, WAN/PoE, LAN, WiFi, Signal Strength |
| RF Specifications | |
| Operating Frequency | 5.150 GHz – 5.850 GHz |
| Data Rate | 867 Mbps |
| 5GHz Transmit Power |
802.11a (54M: 22±2 dBm, 6M: 25±2 dBm) 802.11n HT20 (MCS7: 22±2 dBm, MCS0: 25±2 dBm) 802.11n HT40 (MCS7: 22±2 dBm, MCS0: 25±2 dBm) 802.11ac VHT20 (MCS9: 20±2 dBm, MCS0: 23±2 dBm) 802.11ac VHT40 (MCS9: 20±2 dBm, MCS0: 23±2 dBm) 802.11ac VHT80 (MCS9: 19±2 dBm, MCS0: 22±2 dBm) |
| Receive Sensitivity |
802.11a (54M: -73 dBm, 6M: -90 dBm) 802.11n HT20 (MCS7: -72 dBm, MCS0: -90 dBm) 802.11n HT40 (MCS7: -69 dBm, MCS0: -87 dBm) 802.11ac VHT20 (MCS9: -67 dBm, MCS0: -90 dBm) 802.11ac VHT40 (MCS9: -62 dBm, MCS0: -87 dBm) 802.11ac VHT80 (MCS9: -59 dBm, MCS0: -84 dBm) |
| EVM | 802.11a_54 ≤ -25 dB; 802.11n_MCS7 ≤ -28 dB; 802.11ac_MCS9 ≤ -32 dB |
| Frequency Accuracy | ±20 ppm |
| Operational | |
| Operating Modes | Access Point (AP), Bridge Mode |
| Point-to-MultiPoint | 1 to 8 PTMP Support |
| Wireless Security | Open, WPA, WPA2, WPA-PSK, WPA2-PSK |
| MAC Filtering | Yes (32-device whitelist) |
| User Isolation | Wireless Network Isolation, AP Isolation |
| Maximum Clients | 64 |
| System Configuration | Web-Based Configuration |
| Firmware Upgrade | Web-Based Upgrade |
| Logging | Local Logs, Export Supported |
| Reset Options | Reset or Factory Defaults |
| Backup & Restore | Restore Device Configuration to Local File |
| Additional Features | VLAN, DHCP Server, Hide SSID, Up to 4 SSIDs, Adjustable RF Power |
| Electrical & Mechanical | |
| Input Power |
PoE: Active PoE 48V / 0.2A DC Input: 12V DC / 1A |
| Power Consumption | Less than 10W |
| Dimensions | 168 × 86 × 42.5 mm |
| Housing | ABS Plastic |
| Environmental | |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% Non-Condensing |
| Ingress Protection | IP65 |
| Lightning Protection | 4 kV |
