    XVR

    $79.00
    SKU:
    XVR-24HSB
    Adding to cart… category.add_cart_announcement

    Product Description

    Feature Highlights

    - Over 1KM Wifi Bridging Distance
    - Powerful 11dBi High Gain Antenna
    - Pre-Paired, No Setup Required
    - Instant 1 to 8 Point-to-Multipoint Setup
    - Access Point (Hotspot) and Bridging Mode Simultaneous Operation
    - Horizontal: 60°, Vertical: 30°
    - 12VDC / 24V Passive PoE
    - IP65 Weatherproof and 4kV Lightning Protection

    The XVR-24HSB is the ultimate solution for seamless long-range wireless connectivity, offering reliable performance over distances beyond 1 kilometer. Ideal for outdoor use, this durable bridge supports high-speed 2.4GHz WiFi with speeds up to 300Mbps, ensuring smooth data transfer for all your wireless networking needs. For CCTV applications, this unit can stream a real-time 30fps 4K IP camera from over 3000 feet away.

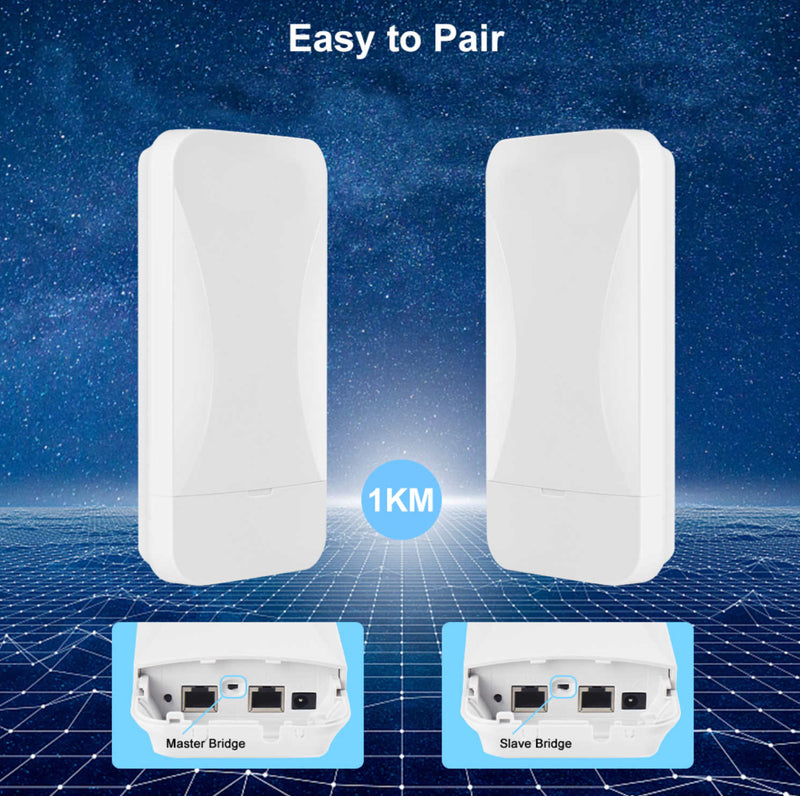

    Featuring instant pairing, setup is a breeze, allowing you to quickly establish a secure connection without complicated configurations. These units come pre-paired for point-to-point applications. Point-to-multipoint configuration couldn't be easier. Simply flip the switch to M on the master bridge and flip the switch to S for all the client bridges, then press the reset button for 1 second on all the bridges to have them sync with each other. This unit is even more versatile by supporting access point mode while bridging. This allows you to connect a wired or wireless client device to the XVR-24HSB to bridge data across the wireless link. Many WiFi bridges on the market today do not allow wireless devices to access the bridge, but ours does seamlessly.

    Again, with versatility, you can power this unit from either the included 24V Passive PoE or 12VDC power (adapter included).

    This unit is uncompromised in ensuring versatility and power efficiency. Whether you're extending WiFi to remote areas, providing off-grid 12VDC systems or connecting multiple buildings, this WiFi bridge delivers high-performance results in a rugged, reliable package.

    Perfect for business, home, or industrial use, the XVR-24HSB brings fast, secure wireless coverage to hard-to-reach areas with ease.

    *For POE, please note this is a 24V passive device and the included PoE injector should be used to power it.  It won't work with a 48V PoE switch unless a 3rd party converter is used. For a long range point-to-point bridge that CAN be powered by a standard 48V PoE switch, click here.

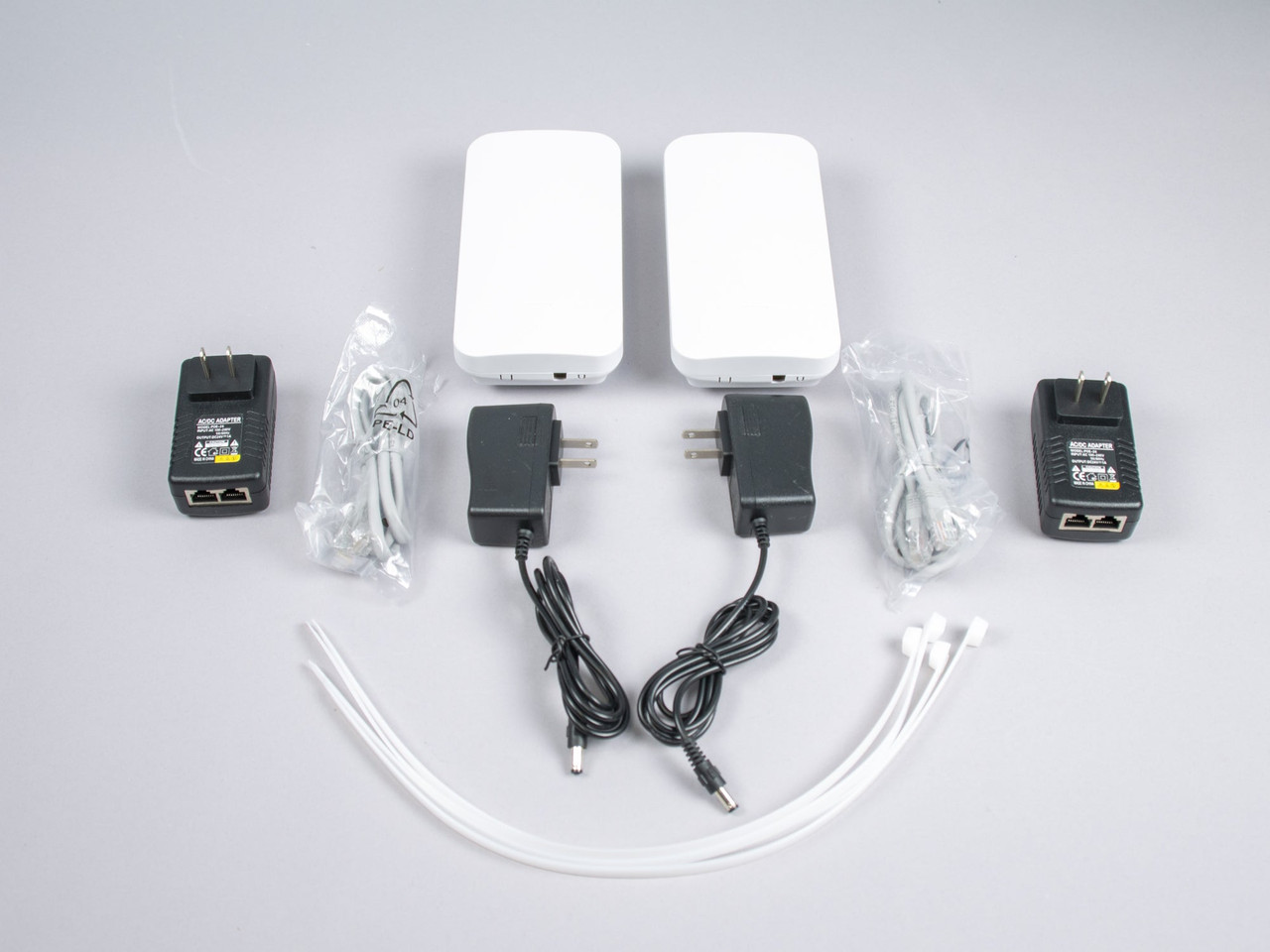

    *24V POE Injector Included. 12VDC Power Supply Included.




    Specifications

    General
    Wireless Standard 802.11 b/g/n, up to 300 Mbps
    Memory 64MB RAM
    Flash 8MB

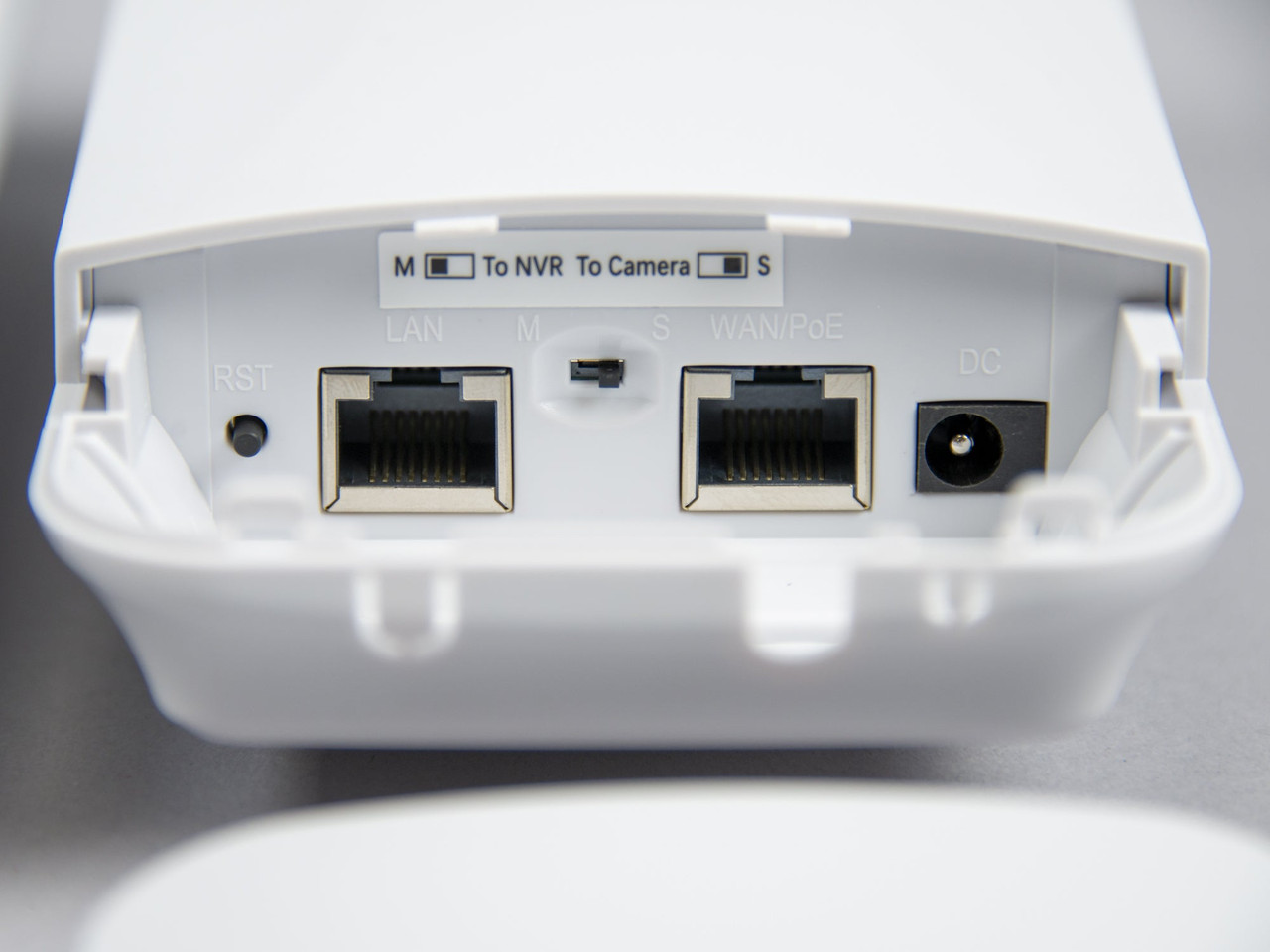

    Interfaces 1 × 10/100 Mbps RJ45 WAN Port
    1 × 10/100 Mbps RJ45 LAN Port
    1 × Master/Slave Switch
    1 × 12V DC Power Input
    1 × Reset Button (10s for factory reset, 1s for pairing)
    Antenna 2.4GHz 11 dBi Dual Polarized High-Gain Directional

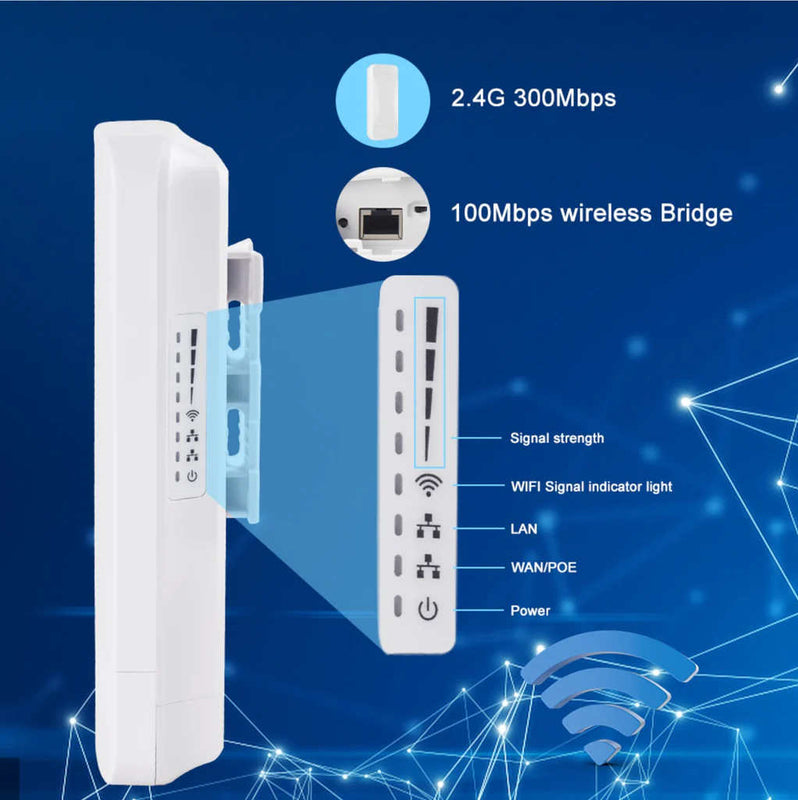

    LED Indicators SYS, WAN/PoE, LAN, WiFi, Signal Strength
    RF Specifications
    Operating Frequency 2.412 GHz – 2.484 GHz
    Data Rate 300 Mbps
    2.4GHz Transmit Power 802.11b (11M: 18±2 dBm)
    802.11g (54M: 17±2 dBm)
    802.11n HT20 (MCS7: 16±2 dBm)
    802.11n HT40 (MCS7: 15±2 dBm)
    Receive Sensitivity 802.11b (11M: -85 dBm, 1M: -94 dBm)
    802.11g (54M: -72 dBm, 6M: -88 dBm)
    802.11n HT20 (MCS7: -68 dBm, MCS0: -86 dBm)
    802.11n HT40 (MCS7: -66 dBm, MCS0: -85 dBm)
    EVM 802.11b ≤ -10 dB; 802.11g ≤ -25 dB; 802.11n ≤ -28 dB
    Frequency Accuracy ±20 ppm
    Operational
    Operating Modes Access Point (AP), Bridge Mode
    Point-to-MultiPoint 1 to 8 PTMP Support
    Wireless Security Open, WPA, WPA2, WPA-PSK, WPA2-PSK
    MAC Filtering Yes (32-device whitelist)
    User Isolation Wireless Network Isolation, AP Isolation
    Maximum Clients 64
    System Configuration Web-Based Configuration
    Firmware Upgrade Web-Based Upgrade
    Logging Local Logs, Export Supported
    Reset Options Reset or Factory Defaults
    Backup & Restore Restore Device Configuration to Local File
    Electrical & Mechanical
    Input Power PoE: Passive PoE 24V / 0.5A
    DC Input: 12V DC / 1A
    Power Consumption Less than 12W
    Dimensions 168 × 86 × 39 mm
    Housing ABS Plastic
    Environmental
    Operating Temperature -20°C to 55°C (-4°F to 131°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
    Operating Humidity 5% to 95% Non-Condensing
    Ingress Protection IP65
    Lightning Protection 4 kV
