Product Description

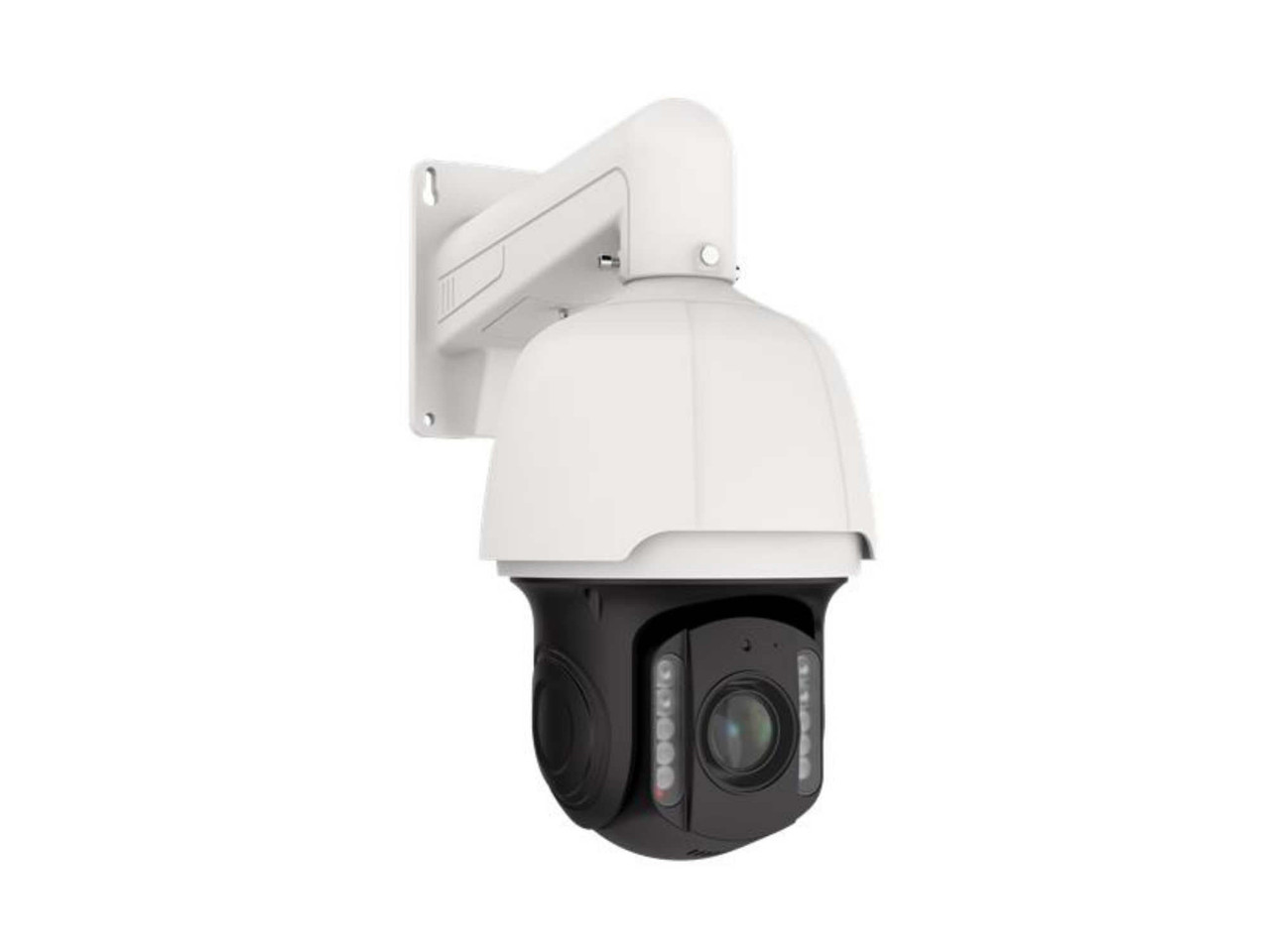

Introducing the X-Series 4K 37X PTZ Camera with Auto-Tracking & Active Deterrence.
The Best Professional PTZ On The Market.
The Two Way Audio Is Outstanding
The Glass Grind 37X Optical Lens Offers Lightning Fast Auto Focus
Achieve Infrared Advanced Osram LED Imaging at 300-400 feet
Field Proven IN ALL CLIMATES
- 1/1.8" 8.0 Megapixel, Progressive Scan, CMOS Sensor
- 8MP (3840 x 2160) @30FPS Encoding
- H.265+/H.265/H.264+/H.264 Video Compression
- 37X Optical Zoom
- Advanced AI (Person/Vehicle, Perimeter, Line Crossing, Cross Counting, Stationary Object, Heat Map, Facial Recognition, LPR, Region Enter/Exit, Object Detection, Rare Sound Detection, Queue Length, Crowd Density)
- Built-in Microphone and Speaker
- Active Deterrence Strobe/Siren
- Smart Dual Illumination
- Auto Tracking
- 3D Positioning
- Smart Cruise
- 150m IR Range
- True 120dB WDR
- Triple-Stream Recording
- Stream to Youtube Support
- NAS and FTP Network Storage
- DDNS
- ONVIF Compatible, Supporting ONVIF Profile M for AI Features
- DC12V/PoE++ Power
- IP67 Waterproof Rating
- IK10 Vandal-Proof Rating
- NDAA and FCC Compliant
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/1.8", 8.0 Megapixel, Progressive Scan, CMOS |
| Effective Pixels | 8MP 3840(H)x2160(V) |
| Min. Illumination | Color 0.0005Lux @F1.6(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | 5.5 - 202mm, 37x Optical Zoom, 16x Digital Zoom |
| Max Aperture Ratio | F1.6 |
| Angular Field of View | Horizontal: 60°-2.3°, Vertical: 35.5°-1.3°, Diagonal: 67.5°-2.7° |
| IR LED | 6 (up to 200M) |
| Warm Light LED | 4 (up to 25M) |
| Red/Blue Light | 2 (1 Red, 1 Blue) |
| IR Distance | 200m |
| Wide Dynamic Range | 120dB WDR |
| Image Setting | Day/Night, Full Color, Smart Illumination |
| White Balance | Auto/Manual |
| BLC/HLC | On/Off |
| AGC | Auto |
| Shutter Speed | 1/5s to 1/20000s |
| Image | |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711a/G.711u |
| Resolution | Mainstream: 8MP (3840x2160) @30fps Substream: 1080P (1920x1080) @30fps Mobilestream: VGA (640x480) @30fps |
| Video Quality Adjustment | 256Kbps - 16Mbps |
| Bitrate Control | CBR/VBR |
| Interfaces | |
| Network | RJ45 (10/100 Base-T) |
| Audio | Built-in Mic/Speaker, 1 RCA Input / 1 RCA Output |
| Local Storage | MicroSD Card Slot (Max 1 TB) |
| Network Storage | NAS (CIFS/SMB), FTP |
| Alarm | 1 Input / 1 Output |
| AI/AD | |
| Smart Motion Detection | Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing |
| License Plate Recognition | Yes |
| Facial Recognition | Yes |
| Additional AI | Region Enter/Exit, Queue Length, Cross Counting, Stationary Object Detection, Heat Map |
| Active Deterrence | Siren, Red/Blue Strobe, Custom Voice |
| PTZ | |
| Pan Range | 360° |
| Pan Speed | Configurable 0.6° to 200°/s |
| Tilt Range | -20° ~ 90° (auto flip) |
| Tilt Speed | Configurable 0.6° to 90°/s |
| Preset | 255 |
| Preset Speed | Max 200°/sec Pan, 100°/sec Tilt |
| Tour | Yes |
| Patrol Scan | 4 patrols, up to 32 presets per patrol |
| Pattern Scan | 4 |
| Power-Off Memory | Yes |
| 3D Positioning | Yes |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | XVM |
| Network Protocol | IPv4, IPv6, TCP, UDP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS, FTP, CIFS, SMB, UPnP, SNMP, RTMP |
| Interface Protocol | ONVIF (Profile M/S/G/T), HTTP API |
| RS-485 Interface | Control by Joystick Controller (PTZ function only) |
| Security | IP Address Filter, Complex Password, Authenticated User |
| General | |
| Power Supply | 36VDC/24VAC/POE++, max 44.8W |
| PoE | Yes, 802.3bt |
| Protection | IP67, IK10 |
| Dimensions (mm) | 206 x 337.8mm |
| Working Environment | Temperature: -30°C~ +60° (-22°F ~ 140°F) Humidity: Less than 90% RH |
| NDAA and FCC-Compliant | Yes |
Product Videos
Custom Field
Style PTZ
Resolution 8MP
Night Vision Full Color
Active Deterrence Yes
Audio Yes
Facial Recognition Yes
LPR Yes
Advanced AI Yes
FPS 30
Lens Zoom
WDR True 120dB
