Product Description

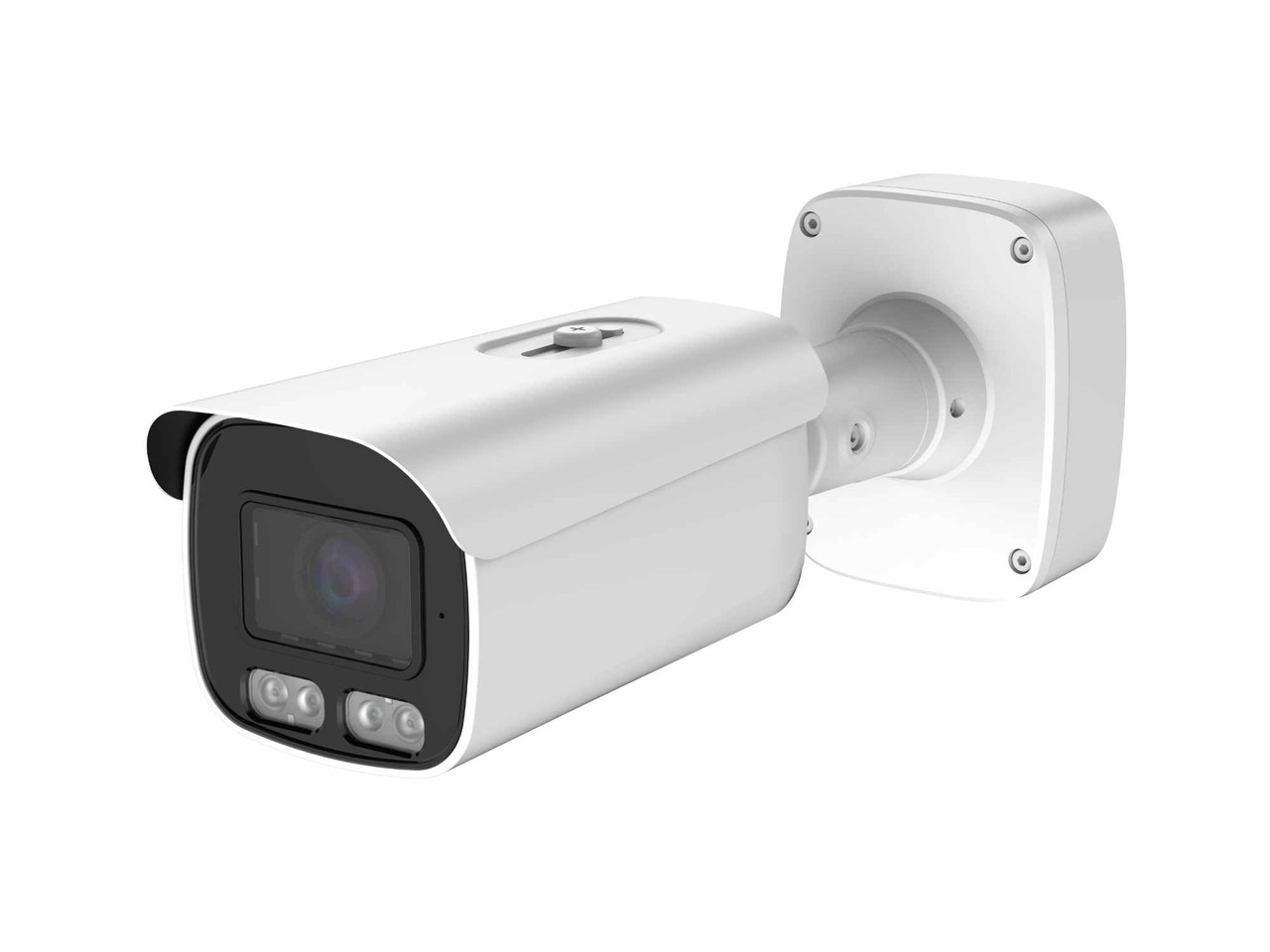

The X-Series XP-8LPR-550-30 is built for long-range vehicle identification and commercial perimeter monitoring where dependable plate capture matters. Its 8MP sensor delivers up to 3840 × 2160 video at 30fps, while the 5–50mm motorized zoom lens lets installers move from a wider overview to a tightly framed vehicle or license plate image without physically repositioning the camera. The camera also supports 120dB WDR, strong-light suppression, 3D noise reduction, and dedicated LPR-focused imaging for changing day and night conditions.
For 24/7 operation, the camera combines a Starlight sensor with dual warm-light and infrared illumination, providing full-color imaging modes, up to 80m IR coverage, and up to 25m warm-light illumination. Intelligent analytics include license plate recognition, face recognition, pedestrian and vehicle detection, perimeter intrusion, line crossing, object detection, people counting, heat maps, crowd density, queue length, region entrance/exit, and rare-sound detection. Built-in microphone and speaker, alarm I/O, customizable voice, and audio/light alarm functions also support active deterrence applications. Its metal housing is rated IP67, IK10, and NEMA 4X, making it well suited for demanding outdoor commercial security installations.
- 1/2.8" 8.0 Megapixel, Progressive Scan, CMOS Sensor
- 8MP (3840 x 2160) @30FPS Encoding
- H.265/H.264 Video Compression
- Advanced AI (Person/Vehicle, Perimeter, Line Crossing, Cross Counting, Stationary Object, Heat Map, Crowd Density, Queue Length, Rare Sound, License Plate Recognition, Facial Recognition, Fire/Smoke Detection)
- Built-In Alarm Box
- Active Deterrence (White Strobes, Siren, Custom Voice)
- Full Color Night Vision / IR Selectable
- True 120db Wide Dynamic Range
- Audio (1 RCA input/output), Built-in Microphone & Speaker
- Alarm (1 input / 1 output)
- 5-50mm Motorized Zoom Lens
- Triple-Stream Recording
- FTP Network Storage
- DDNS
- Micro SD Slot (up to 256GB)
- ONVIF Compatible
- DC12V/PoE Power
- IP67 Waterproof Rating
- IK10 Vandalproof Rating
- NEMA 4X Enclosure rating
- NDAA and FCC Compliant
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8MP (3840 × 2160) @ 30fps |
| Minimum Illumination | Color: 0.009 Lux @ F1.6 (AGC ON) / B&W: 0 Lux (IR ON) |
| Wide Dynamic Range | 120dB WDR |
| Digital Noise Reduction | 3D DNR |
| Backlight Compensation | Supported |
| Strong Light Suppression | Supported |
| White Balance | Auto / Manual |
| Electronic Shutter | 1/5s to 1/20000s |
| Image Modes | Full Color / Day & Night / Smart Illumination |
| Lens | |
| Lens Type | Motorized Zoom |
| Focal Length | 5–50mm |
| Aperture | F2.0 ±5% |
| Field of View | H: 49°–7° / V: 27°–4° / D: 57°–8° |
| Minimum Object Distance | 0.2m to Infinity |
| Iris Type | Ø14 |
| Illumination | |
| IR LEDs | 8 |
| Warm Light LEDs | 4 |
| IR Distance | Up to 80m (262 ft) |
| Warm Light Distance | Up to 25m (82 ft) |
| Supplemental Lighting | Warm Light / Infrared, Switchable |
| Starlight Sensor | Supported |
| 24/7 Full-Color Imaging | Supported |
| Image & Video | |
| Video Compression | H.265 / H.264 / H.265+ / H.264+ / MJPEG |
| Main Stream |
Up to 30fps 8MP (3840 × 2160) 5MP (3072 × 1728 / 2592 × 1944) 4MP (2592 × 1520) 3MP (2304 × 1296) 1080p (1920 × 1080) 720p (1280 × 720) |
| Sub Stream |
Up to 30fps 1080p (1920 × 1080) 720p (1280 × 720) VGA (640 × 480) |
| Mobile Stream |
Up to 30fps VGA (640 × 480) QVGA (320 × 240) |
| Video Bitrate | 256Kbps – 16Mbps |
| Bitrate Control | CBR / VBR |
| AI & Smart Analytics | |
| License Plate Recognition | Supported |
| License Plate Capture Speed | Up to 30 MPH |
| Face Recognition | Supported |
| Pedestrian & Vehicle Detection | Supported |
| Perimeter Analytics | Perimeter Intrusion / Line Crossing / Intrusion / Region Entrance / Region Exit |
| Object Detection | Supported |
| People Counting | Crossing Counting / Crowd Density / Queue Length |
| Heat Map | Supported |
| Rare Sound Detection | Supported |
| Fire Detection | Supported |
| Smoke Detection | Supported |
| Motion Detection | On / Off, 8 Sensitivity Levels |
| Audio, Alarm & Storage | |
| Built-In Audio | 1 Built-In Microphone / 1 Built-In Speaker |
| Audio I/O | 1 Audio Input / 1 Audio Output |
| Alarm I/O | 1 Alarm Input / 1 Alarm Output |
| Audio & Light Alarm | Supported |
| Custom Voice | Supported |
| Hardware Reset | Supported |
| Local Storage | MicroSD Card up to 1TB |

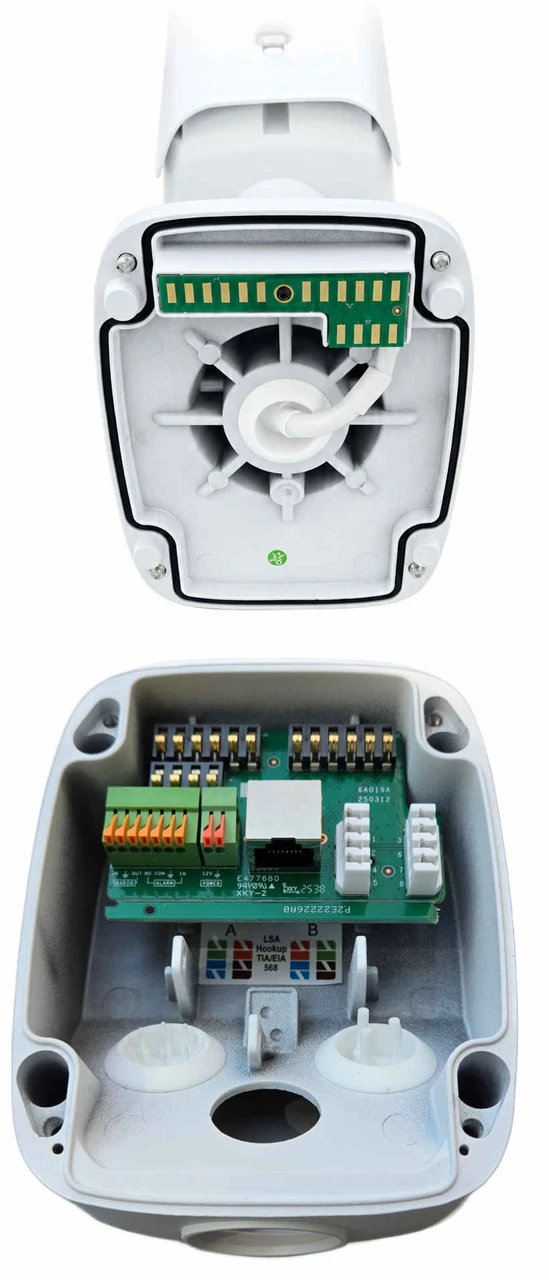

| Integrated Alarm Box | Built-In Wiring / Connection Compartment |
| Network & Connectivity | |
| Ethernet | 1 × RJ45 10/100BASE-T |
| IP | IPv4/IPv6 |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| ONVIF | Profiles S / G / T / M |
| Network Security | IP Address Filtering / Complex Password / Username & Password Authentication |
| Web Browser Support | Internet Explorer 10/11 / Safari 12.1+ / Firefox 52+ / Chrome 57+ / Edge 79+ |
| Environmental | |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Enclosure Rating | NEMA 4X |
| Operating Temperature | -35°C to +60°C (-31°F to 140°F) |
| Operating Humidity | 90% or Less |
| Housing Material | Metal |
| Physical Specifications | |
| Overall Length | 345mm (13.58") |
| Front Width / Height | 127mm (5.0") |
| Power | |
| Power Input | 12VDC or PoE (IEEE 802.3af) |
| Maximum Power Consumption | 12VDC: 10.28W Max / PoE (48V): 12.6W Max |
