Product Description
Introducing the X-Series XP-5AI-MZB.With a 5 megapixel, real-time, high-definition resolution and wide dynamic range (WDR), this camera captures crystal-clear footage in both day and night, in bright sunlight or deep shadows, allowing you to monitor your property 24/7.
The camera is equipped with advanced artificial intelligence. From Smart Motion Detection events such as perimeter intrusion and person/vehicle detection to advanced AI using facial recognition* and license plate recognition. View the videos in the tab below to see some of the many features of this camera.
Easy to install and configure, this motorized zoom bullet camera is suitable for both indoor and outdoor use and comes with a durable full metal housing that can withstand harsh weather conditions.
*Requires NVR support for facial recognition
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/2.7", 5.0 Megapixel, Progressive Scan, CMOS |
| Effective Pixels | 5MP 2880(H)x1620(V) |
| Min. Illumination | Color 0.004Lux @F1.6(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | Motorized 2.8-12mm |
| Max Aperture Ratio | F1.6 |
| Angular Field of View | Horizontal: 107-34°, Vertical: 55-19°, Diagonal: 134-38° |
| Min. Object Distance | 1.2m |
| IR LED | 1 |
| Warm Light | n/a |
| Red/Blue Light | n/a |
| IR Distance | 45m |
| Warm Light Distance | n/a |
| Wide Dynamic Range | True WDR |
| Image Setting | IR Cut Filter Day&Night / Schedule |
| White Balance | Auto/Manual |
| BLC/HLC | Yes |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Digital Noise Reduction | 3D DNR |
| Image | |
| Video Compression | H.265+/H.264+/H.265/H.264 |
| Audio Compression | G.711a |
| Resolution | Mainstream: 5MP (2880x1620) @30fps Substream: 720P (1280x720) @30fps Mobilestream: VGA (640x480) @30fps |
| Video Quality Adjustment | 256Kbps - 8Mbps |
| Bitrate Control | CBR/VBR |
| Interfaces | |
| Network | RJ45 (10/100 Base-T) |
| Audio | 1 RCA Input, 1 RCA Output |
| Local Storage | Micro SD, up to 256GB |
| Network Storage | NAS (CIFS/SMB), FTP |
| Reset Button | Yes |
| Alarm | n/a |
| AI/AD | |
| Smart Motion Detection | Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing |
| License Plate Recognition | Yes |
| Facial Recognition | Yes (Requires NVR support) |
| Additional AI | Cross Counting, Stationary Object Detection, Heat Map, Crowd Density, Queue Depth, Rare Sound Detection |
| Active Deterrence | n/a |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | XVM |
| Network Protocol | IPv4, IPv6, TCP, UDP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS, FTP, CIFS, SMB, UPnP, SNMP, |
| Interface Protocol | ONVIF (Profile S/G/T) |
| ANR | Yes |
| Security | IP Address Filter, Complex Password, Authenticated User |
| Regions of Interest (ROI) | Yes |
| Corridor Mode | Supported |
| General | |
| Power Supply | DC12V/POE |
| Power Consumption | Max 6.8W, PoE Max 8.4W |
| PoE | Yes, 802.3af |
| Ingress Protection | IP67 |

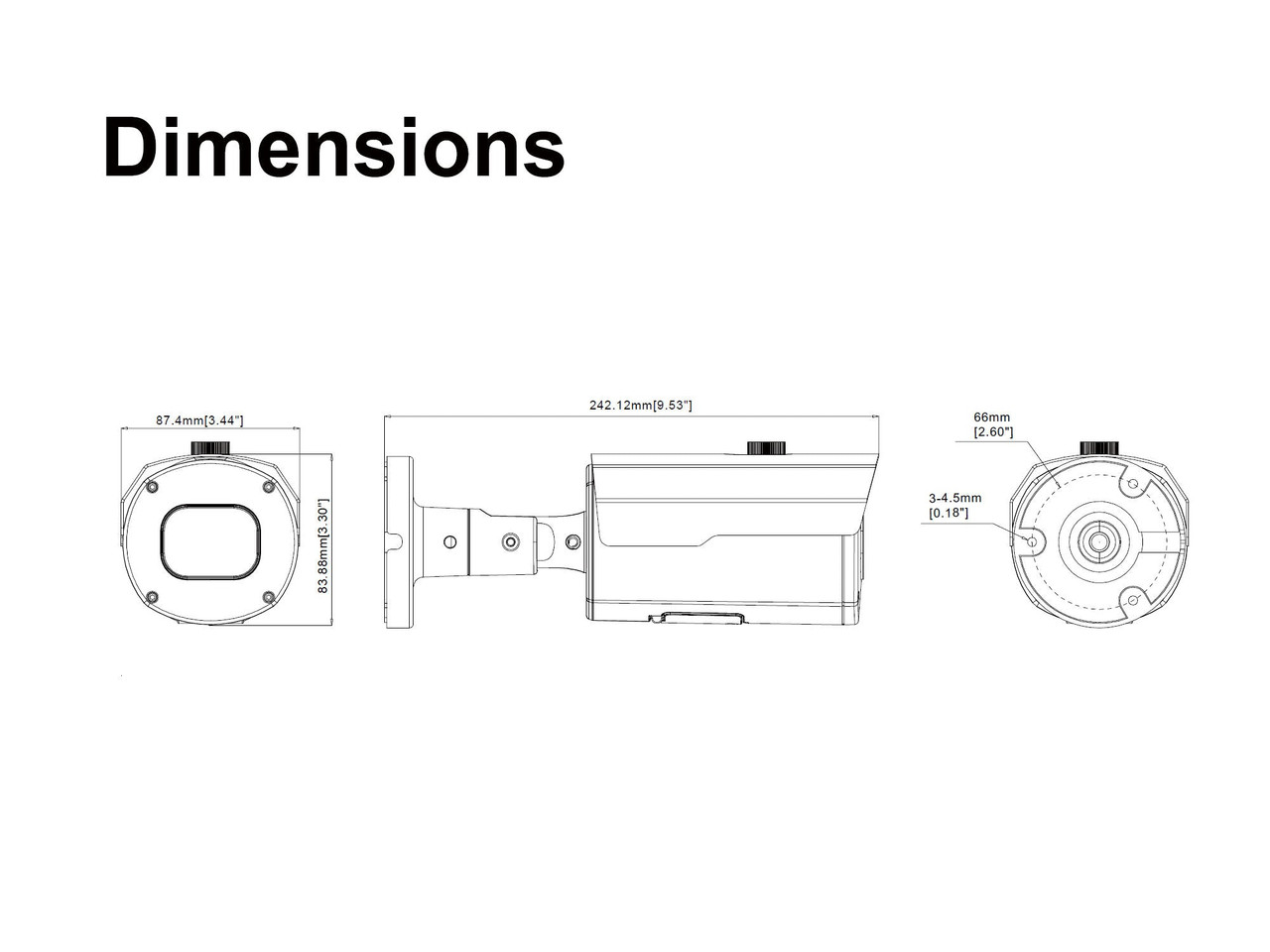

| Dimensions (mm) | 242 x 87mm |
| Working Environment | Temperature: -35°C~ +60° (-31°F ~ 140°F) Humidity: Less than 95% RH |
| Weight | 845g |
| Material | Metal |
| NDAA and FCC-Compliant | Yes |
Product Videos
Custom Field
Style Bullet
Resolution 5MP
Night Vision Infrared Black/White
Active Deterrence No
Audio No
Facial Recognition w/NVR
LPR Yes
Advanced AI Yes
FPS 30
Lens Motorized Varifocal
WDR True 120dB
