Product Description

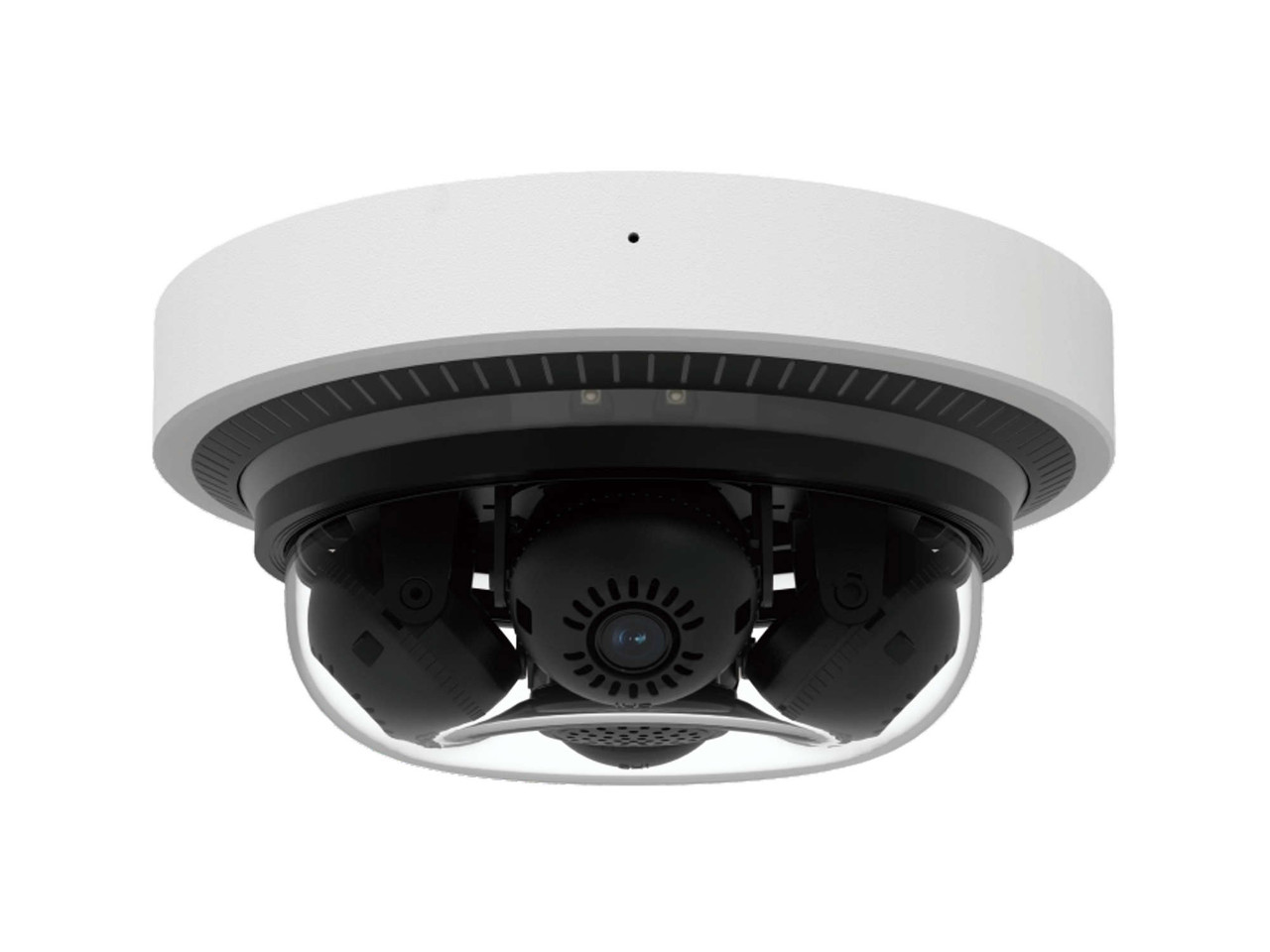

XP-PANO-4C 16MP Panoramic AI Camera
The XP-PANO-4C is G4 Direct's newest panoramic IP camera — and quickly becoming installers' most requested model. Four integrated 4MP sensors provide complete coverage from a single compact dome while requiring only one POE connection. No need to run four separate cables.
Generating rave reviews and exceptional profit margins, installers are routinely yielding $1,100 to $1,800 per installation. Compact, professional, and priced to help you win every bid — at roughly a third of what competitors quote their customers.
Simplify every installation with a single cable and four channels of coverage. Deliver premium panoramic surveillance with full-color night performance, built-in deterrence, two-way audio, and advanced AI — all in one compact dome.
Key Features
- One POE Connection powers all four sensors
- 2 High Performance Microphones for exceptional audio capture
- Built-In Speaker with powerful siren alert
- Exceptional Two-Way Audio
- All AI Features Included
- 4 × 4MP Sensors with 2.8mm wide-angle lenses
- Full Color Mode for flawless low-light performance
- Ceiling or Wall Mounting
- Indoor / Outdoor Rated
- Compact Design — only 8" diameter × 4.5" tall
Specifications
| Sensors | 4 × 4MP Sensors, 2.8mm Wide Angle Lenses |
| Power | Single POE Connection |
| Audio | 2 Microphones, Built-In Speaker, Two-Way Audio, Siren Alert |
| Night Vision | 24/7 Full Color Mode |
| AI Features | All AI Functions Included |
| Mounting | Ceiling or Wall |
| Rating | Indoor / Outdoor |
| Dimensions | 8" Diameter × 4.5" Tall |
Next shipment arriving soon. Reserve yours today by emailing sales@g4direct.com. No payment required to join the pre-order list.
Pre-Order the Pano-4CSpecifications
| Camera | |
|---|---|
| Imaging Device | 1/2.7", 4.0 Megapixel, Progressive Scan, CMOS |
| Effective Pixels | 4MP 2688H)x1520(V) |
| Min. Illumination | Color 0.005Lux @F1.2(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | 2.8mm Fixed |
| Max Aperture Ratio | F1.2 |
| Angular Field of View | Horizontal: 102, Vertical: 55°, Diagonal: 122° |
| Min. Object Distance | 1.5m |
| IR Distance | 20m |
| Warm Light Distance | 15m |
| Wide Dynamic Range | DWDR |
| Image Setting | Full Color Mode / Day&Night / Schedule |
| White Balance | Auto/Manual |
| BLC/HLC | Yes |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Digital Noise Reduction | 3D DNR |
| Image | |
| Video Compression | H.265+/H.264+/H.265/H.264 |
| Audio Compression | G.711a, G.711u |
| Resolution | Mainstream: 4MP (2688x1520) @15fps Substream: 720P (1280x720) @15fps |
| Video Quality Adjustment | 128Kbps - 8Mbps |
| Bitrate Control | CBR/VBR |
| Interfaces | |
| Network | RJ45 (10/100/1000 Base-T) |
| Audio | Built-in Dual Mic and Speaker |
| Local Storage | Micro SD, up to 1TB |
| Network Storage | FTP |
| Reset Button | Yes |
| Alarm | 1 inputs, 1 output |
| AI/AD | |
| Smart Motion Detection | Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing |
| License Plate Recognition | No |
| Facial Recognition | No |
| Additional AI | Cross Counting, Stationary Object Detection, Heat Map, Crowd Density, Queue Depth, Region Enter/Exit |
| Active Deterrence | Flashing White Lights and Siren |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | XMV |
| Network Protocol | IPv4, IPv6, TCP, UDP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS, FTP, PPPoE, UPnP, SNMP |
| Interface Protocol | ONVIF (Profile S/G/T/M) |
| ANR | Yes |
| Security | IP Address Filter, Complex Password, Authenticated User |
| Regions of Interest (ROI) | Yes |
| Corridor Mode | No |
| General | |
| Power Supply | AC24V/DC12V/POE+ |
| Power Consumption | Max 19W |
| PoE | Yes, 802.3at |
| Ingress Protection | IP67 |

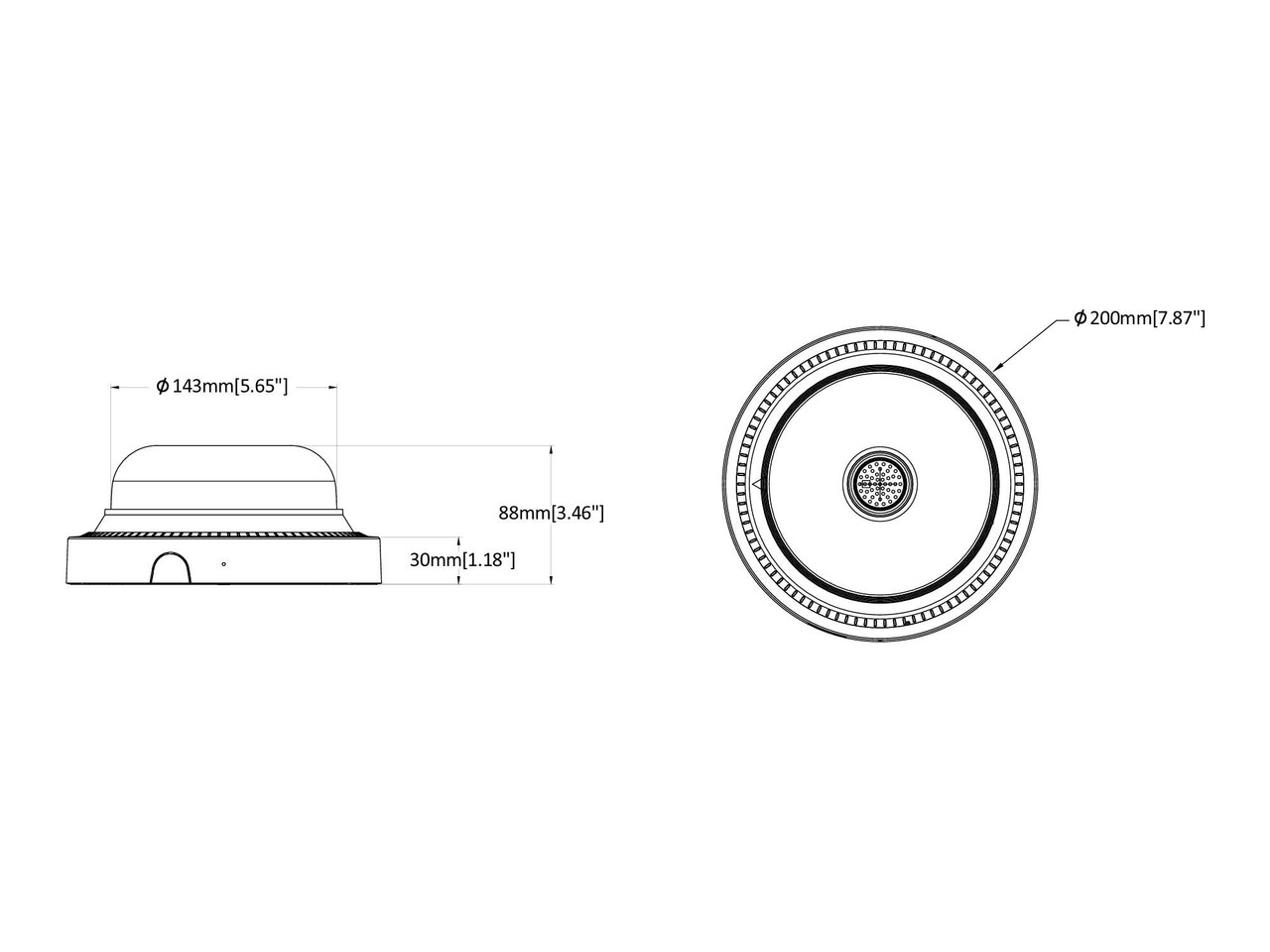

| Dimensions (mm) | 200 x 88mm (7.87" x 3.46") |
| Working Environment | Temperature: -30°C~ +60° (-22°F ~ 140°F) Humidity: Less than 95% RH |
| Weight | 2.94kg |
| Material | Alloy |
| NDAA and FCC-Compliant | Yes |
