Product Description

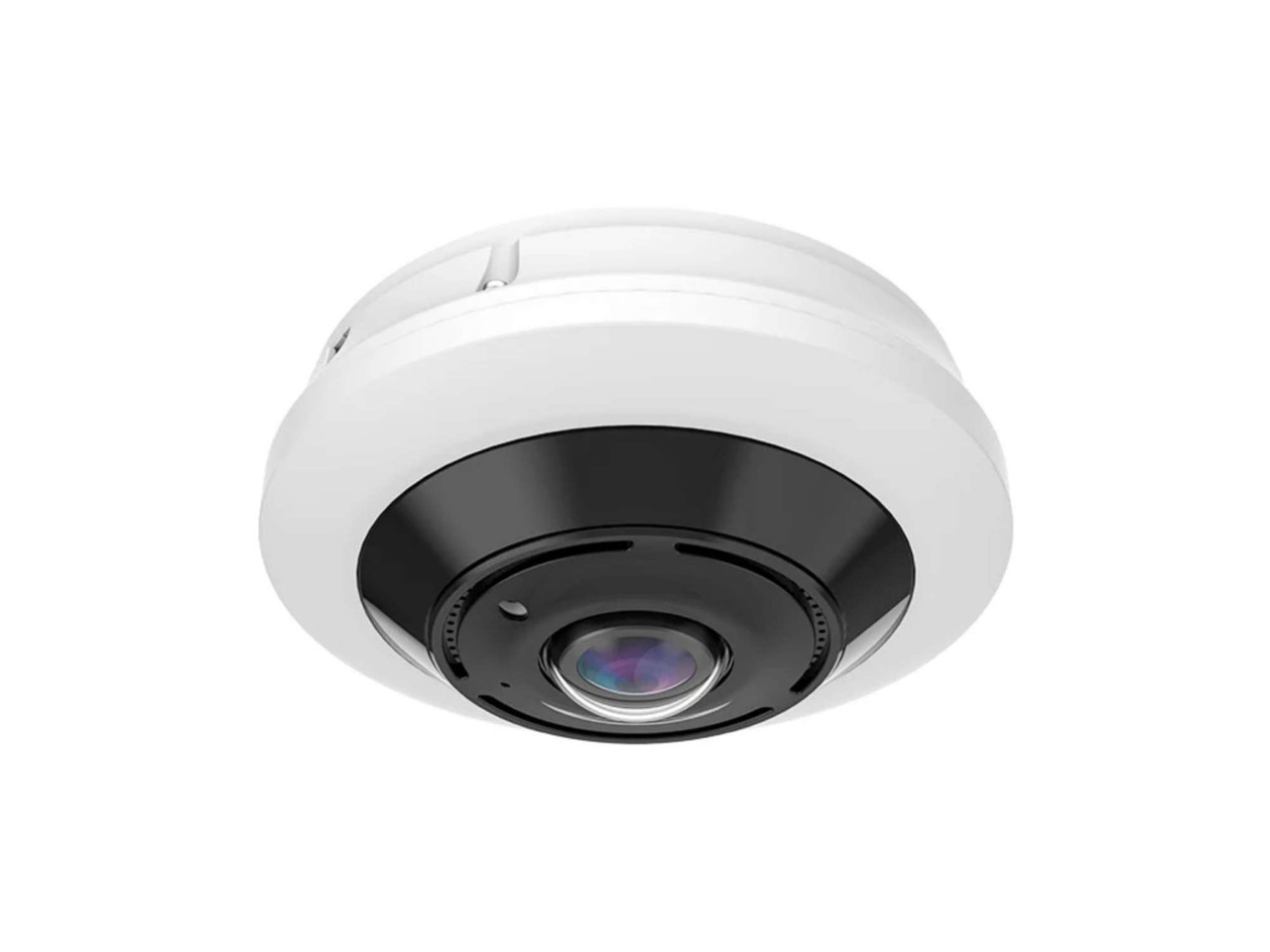

Introducing the X-Series XPRO 12MP fisheye CCTV camera, perfect for monitoring large indoor areas such as warehouses, shopping malls, and other commercial spaces.
At the heart of this camera is its 12-megapixel image sensor, which captures crystal-clear video footage in stunning detail. Its fisheye lens provides a panoramic view of the surrounding area, giving you a 360-degree view of the space being monitored. The built-in hardware dewarping provides for flexible viewing modes, including 180° panorama, dual panorama, 360° panorama, fisheye, 3PTZ, and 4PTZ layouts. The camera's built-in microphone also provides audio monitoring and recording. An IR cut filter with auto switching, provides 10m visibility in complete darkness.
Built-in audio, siren, and alarm input/output support active security integration, while intelligent analytics such as line crossing, people counting, heat mapping, intrusion detection, queue monitoring, crowd density, region entrance and exit detection, and rare sound detection deliver advanced situational awareness.
The camera's high-quality full metal construction is designed to withstand harsh environmental conditions, making it ideal for indoor or outdoor use.
- 1/1.6" 12.0 Megapixel, Progressive Scan, CMOS Sensor
- 12MP (3536 x 3536) @25FPS Encoding
- Hardware Decode/Dewarp
- H.265+/H.265/H.264+/H.264 Video Compression
- IR Range 10m
- Built-in Microphone
- Siren
- True 120db Wide Dynamic Range
- 2.0mm Fixed Lens
- Dual-Stream Recording
- NAS/FTP Network Storage
- DDNS
- Micro SD Slot (up to 1TB)
- ONVIF S/G/T/M Compatible
- DC12V/PoE Power
- IP66 Waterproof Rating
- NDAA and FCC Compliant
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/1.6", 12.0 Megapixel, Progressive Scan, CMOS |
| Effective Pixels | 12MP 3536(H)x3536(V) |
| Min. Illumination | Color 0.06Lux @F1.6(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | Fixed (M12) 2.0mm |
| Max Aperture Ratio | F2.8 |
| Angular Field of View | Horizontal: 180° (wall mount), 360°(ceiling mount) |
| Min. Object Distance | 0.4m |
| IR LED | 3 |
| Warm Light | n/a |
| Red/Blue Light | n/a |
| IR Distance | 10m |
| Warm Light Distance | n/a |
| Wide Dynamic Range | DWDR |
| Image Setting | IR Cut Filter Day&Night / Schedule |
| White Balance | Auto/Manual |
| Anti-Overexposure | On/Off |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Digital Noise Reduction | 3D DNR |
| Image | |
| Video Compression | H.265+/H.264+/H.265/H.264 |
| Audio Compression | G.711a/u |
| Resolution | Mainstream: 12MP (3536x3536) @25fps Substream: 2MP 1080x1080 @25fps |
| Video Quality Adjustment | 256Kbps - 16Mbps |
| Bitrate Control | CBR/VBR |
| Interfaces | |
| Network | RJ45 (10/100 Base-T) |
| Audio | Built-in Microphone |
| Local Storage | Micro SD, up to 1TB |
| Network Storage | NAS (CIFS/SMB), FTP |
| Reset Button | Yes |
| Alarm | 1 Input, 1 Output |
| AI/AD | |
| Smart Motion Detection | Yes |
| License Plate Recognition | No |
| Facial Recognition | No |
| Additional AI | Line Crossing, Crossing Counting, Heat Map, Rare Sound, Intrusion,
Region Entrance, Region Exiting, Queue Length, Crowd Density |
| Active Deterrence | Siren |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | XVM Plus |
| Network Protocol | IPv4, IPv6, TCP, UDP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS, FTP, CIFS, SMB, UPnP, SNMP, |
| Interface Protocol | ONVIF (Profile S/G/T/M) |
| ANR | Yes |
| Security | IP Address Filter, Complex Password, Authenticated User |
| Regions of Interest (ROI) | No |
| Corridor Mode | n/a |
| General | |
| Power Supply | DC/POE |
| Power Consumption | DC12V: Max 8.0W, PoE: Max 9.7W |
| PoE | Yes, 802.3af |
| Ingress Protection | IP66 |
| Dimensions (mm) | 120 x 55mm |
| Working Environment | Temperature: -35°C~ +60° (-31°F ~ 140°F) Humidity: Less than 95% RH |
| Weight | 650g |
| Material | Metal |
| NDAA and FCC-Compliant | Yes |
