Product Description

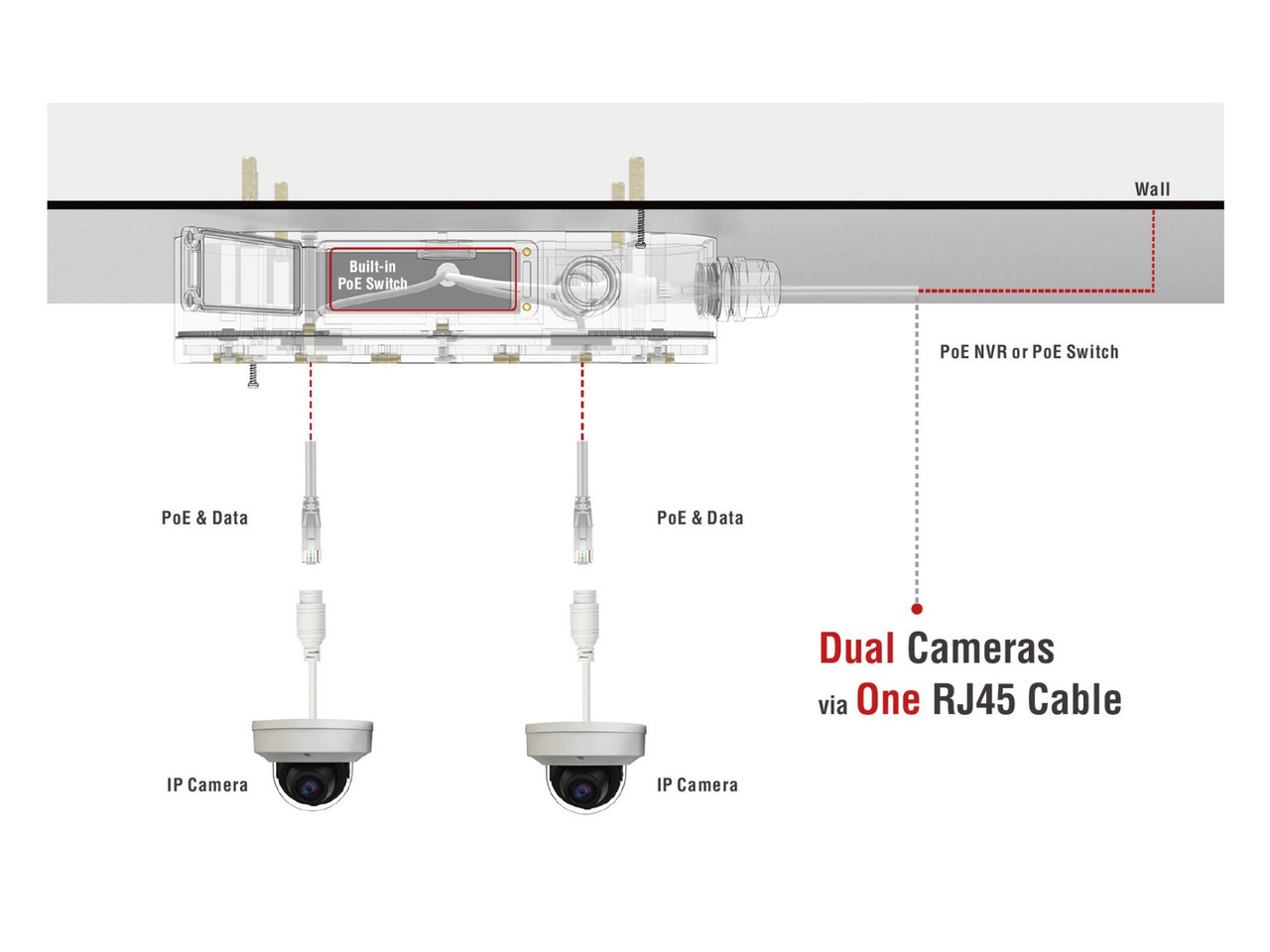

Introducing our all-weather X-Series dual camera junction box with a built-in PoE Ethernet switch - the ultimate solution for your surveillance installation needs. This high-quality junction box is made from durable materials and designed to withstand harsh weather conditions and comes with 4kV surge protection, making it perfect for outdoor use.Specifications
| Specifications | |
|---|---|
| Interfaces | LAN: 2 x RJ-45, 10/100M PoE; Uplink: 1 x RJ-45, 10/100M PoE |
| Network Standard | IEEE 802.3 |
| Mac | 3 |
| Uplink Port Rate | 100 Mbps |
| Downlink Port Rate | 100 Mbps |
| Backplane Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| Internal Cache | 768Kb |
| PoE Standard | IEEE 802.3af/at (LAN: each port Max 15W, Uplink: Max 30W) |
| Switch Power Consumption | 5W |
| Shell | PA66 + 30% GF, IP66 |
| Install Method | Wall or Ceiling Mount |
| Dimensions | 240x120x70mm |
| Operating Environment | Temperature: -30°C~ +60° (-22°F ~ 140°F) Humidity: Less than 90% RH |
| Surge Protection | 4KV |
