Product Description

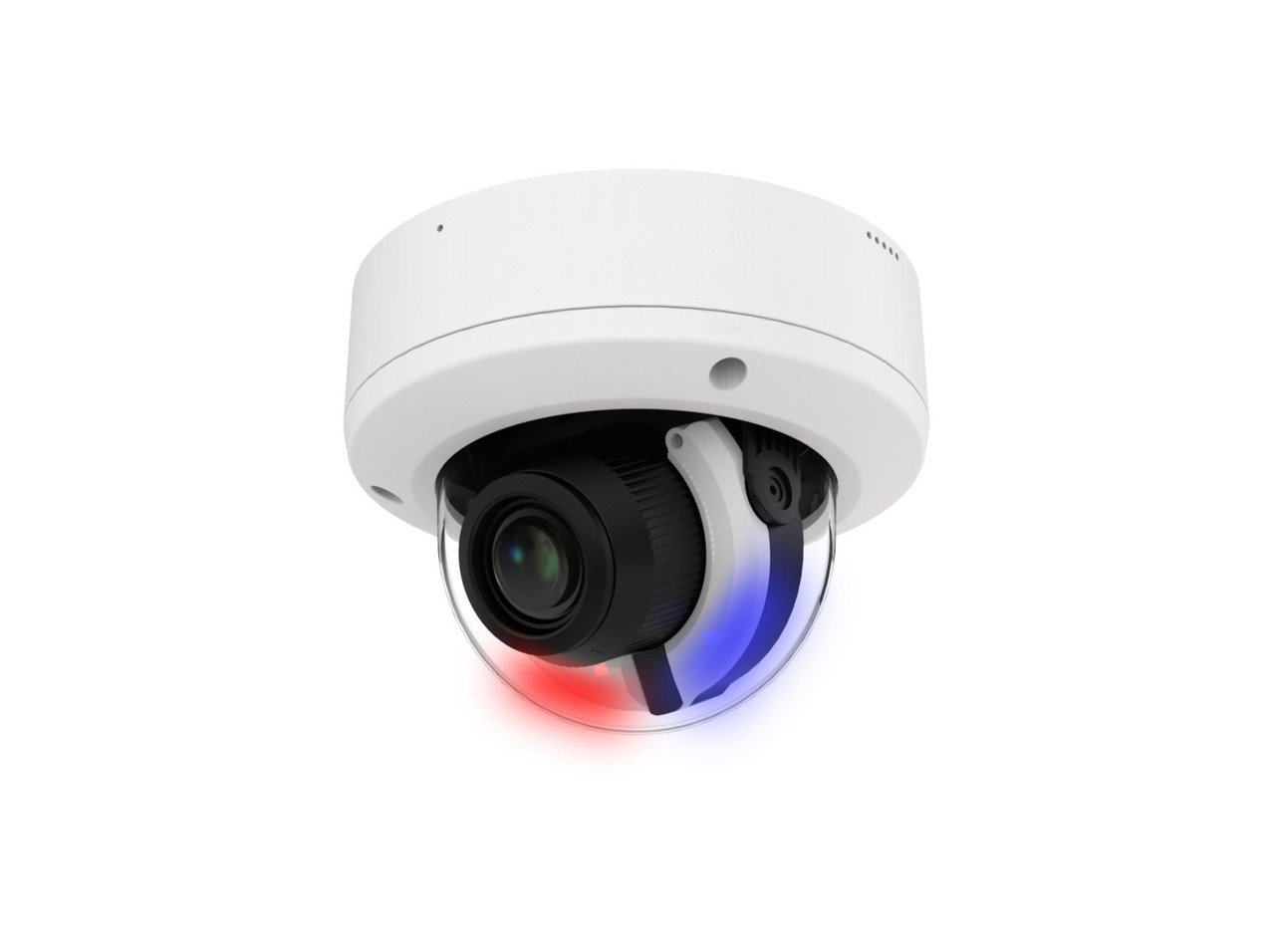

Introducing the X-Series XP-8ALL-MZD. Our motorized zoom lens, 8MP Vandal Dome Security Camera with Active Deterrence, Full Color Night Vision, and Advanced AI.
With 8 megapixel high-definition resolution this camera captures crystal-clear footage in both day and night, allowing you to monitor your property 24/7. Thanks to its advanced full-color night vision technology, you can see everything in vivid detail even in complete darkness, providing you with unparalleled clarity and peace of mind.
But that's not all - this security camera also features Active Deterrence, a cutting-edge technology that helps prevent intruders from even approaching your property. Equipped with a built-in siren and flashing red/blue lights, this camera can be configured to automatically trigger an alarm and deter potential intruders when motion is detected.
The camera is also equipped with advanced artificial intelligence. From Smart Motion Detection events such as perimeter intrusion and person/vehicle detection to advanced AI using facial recognition*. View the videos in the tab below to see some of the many features of this camera.
Easy to install and configure, this vandal dome camera is suitable for both indoor and outdoor use and comes with a durable full metal, IK10 vandal rated housing that can withstand harsh weather conditions and impact. So why wait? Invest in the 8MP Vandal Dome Security Camera with Active Deterrence, Full Color Night Vision, and advanced AI today and take your security to the next level!
*Requires NVR support for facial recognition
*Does not support license plate recognition
- 1/2.7" 8.0 Megapixel, Progressive Scan, CMOS Sensor
- 8MP (3840 x 2160) @20FPS Encoding
- H.265/H.264 Video Compression
- Advanced AI (Person/Vehicle, Perimeter, Line Crossing, Cross Counting, Stationary Object, Heat Map, Crowd Density, Queue Length, Rare Sound, Facial Recognition*)
- Active Deterrence (Red/Blue Warning Lights, Siren, Custom Voice)
- Full Color Night Vision / IR Selectable
- Audio, Built-in Mic and Speaker
- 2.8-12mm Motorized Zoom Lens
- Triple-Stream Recording
- Google Drive/Dropbox Cloud Support
- NAS and FTP Network Storage
- DDNS
- Micro SD Slot (up to 256GB)
- ONVIF Compatible
- DC12V/PoE Power
- IP67 Waterproof Rating
- IK10 Vandal Rating
- NDAA and FCC Compliant
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/2.7", 8.0 Megapixel, Progressive Scan CMOS |
| Effective Pixels | 8MP (3840 × 2160) |
| Minimum Illumination | Color: 0.007 Lux @ F1.0 (AGC ON) B/W: 0 Lux (IR ON) |
| Lens Type | Motorized 2.8–12mm |
| Max Aperture | F1.0 |
| Field of View | Horizontal: 113°–36° Vertical: 59°–20° Diagonal: 139°–41° |
| Minimum Object Distance | 1.5m |
| IR LEDs | 4 |
| Warm Light LEDs | 4 |
| Red/Blue LEDs | 2 (1 Red, 1 Blue) |
| IR Distance | Up to 35m |
| Warm Light Distance | Up to 30m |
| Wide Dynamic Range | DWDR |
| Image Settings | Full Color Mode / Day & Night / Schedule |
| White Balance | Auto / Manual |
| BLC / HLC | Yes |
| Electronic Shutter | 1/5 ~ 1/20000s |
| Digital Noise Reduction | 3D DNR |
| Image | |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 |
| Audio Compression | G.711a |
| Resolution |
Main Stream: 8MP (3840 × 2160) @20fps Sub Stream: 720P (1280 × 720) @20fps Mobile Stream: VGA (640 × 480) @20fps |
| Video Bitrate | 256Kbps – 16Mbps |
| Bitrate Control | CBR / VBR |
| Interfaces | |
| Network | RJ45 (10/100 Base-T) |
| Audio | Built-in Microphone & Speaker |
| Local Storage | Micro SD, up to 256GB |
| Network Storage | NAS (CIFS/SMB), FTP |
| Reset Button | Yes |
| Alarm | N/A |
| AI / Active Deterrence | |
| Smart Motion Detection | Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing |
| License Plate Recognition | No |
| Facial Recognition | Yes (Requires NVR Support) |
| Additional AI Features | Cross Counting, Stationary Object Detection, Heat Map, Crowd Density, Queue Depth, Rare Sound Detection |
| Active Deterrence | Siren, Red/Blue Strobe, Custom Voice |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | XVM |
| Network Protocols | IPv4, IPv6, TCP, UDP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS, FTP, CIFS, SMB, UPnP, SNMP |
| Interface Protocol | ONVIF (Profile S/G/T) |
| ANR | Yes |
| Security | IP Address Filter, Complex Password, Authenticated User |
| ROI | Supported |
| Corridor Mode | Supported |
| General | |
| Power Supply | DC12V / PoE |
| Power Consumption | Max 9.8W (PoE Max 12.3W) |
| PoE Standard | 802.3af |
| Ingress Protection | IP67 |
| Dimensions | 240 × 88mm |
| Operating Temperature | -35°C ~ +60°C (-31°F ~ 140°F) |
| Operating Humidity | Less than 95% RH |
| Weight | 846g |
| Material | Metal, IK10 Vandal Rated |
| Compliance | NDAA & FCC Compliant |
