Product Description

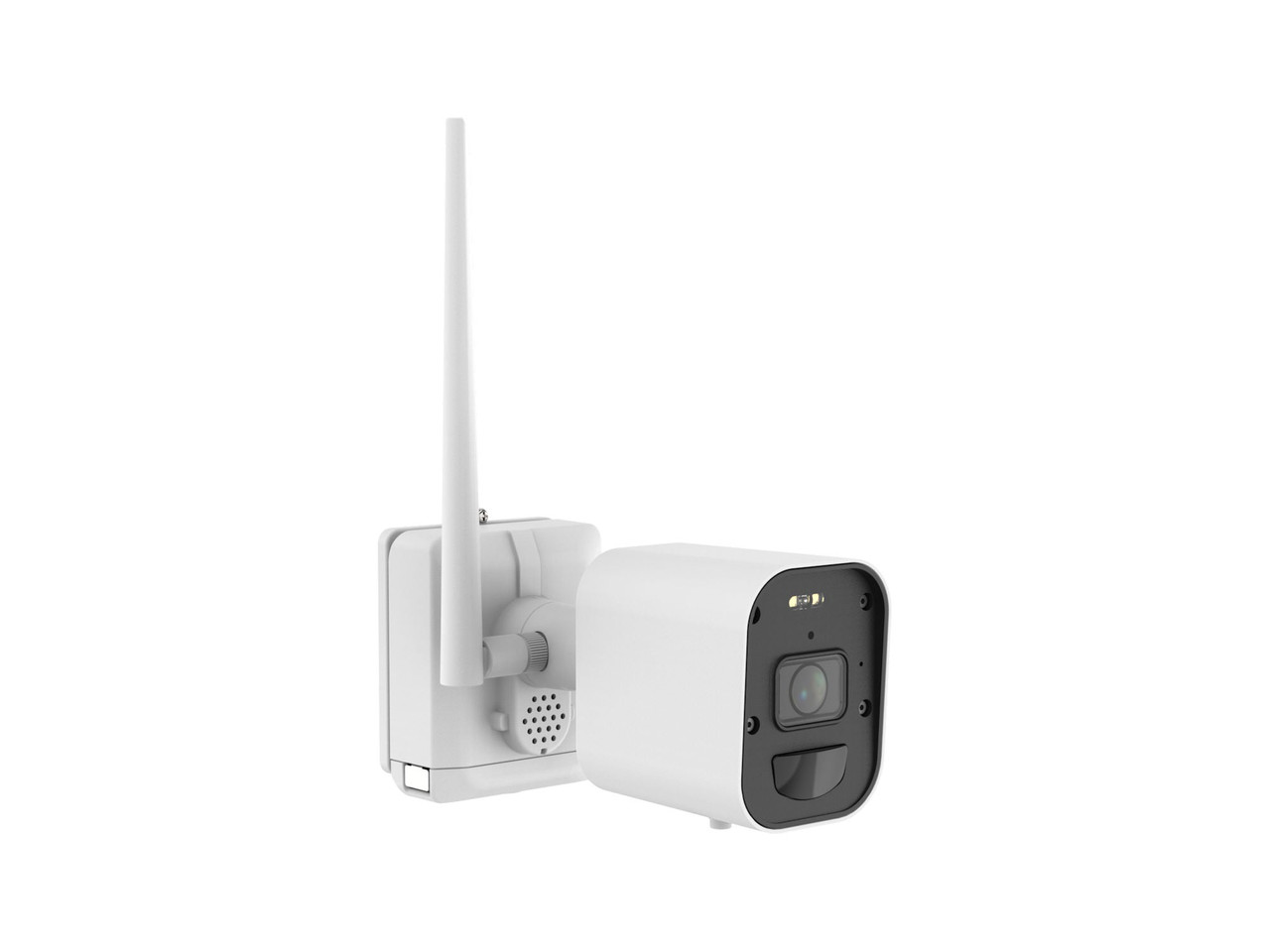

The XP-4KBC are additional cameras for the X-NVR-BCK Wifi camera kit. These Wifi HaLow wireless cameras are only compatible with the X-NVR-BCK and cannot be used as a standalone camera or with any other NVR.Specifications
| Camera | |
|---|---|
| Imaging Device | 1/2.7" |
| Effective Pixels | 4K 3840(H)x2160(V) |
| Min. Illumination | 0 Lux (IR LED On) |
| Wifi Transmission Distance | Max 700M (unobstructive, no interference) |
| Lens Type/Focal Length | Fixed 2.8mm |
| Max Aperture Ratio | F1.6 |
| Angular Field of View | Horizontal:111°, Vertical:59°, Diagonal: 134° |
| Min. Object Distance | 2m |
| IR LED | 1 |
| Warning Light | 2 (white) |
| IR Distance | 15m |
| PIR Distance | 10m (120°) |
| Wide Dynamic Range | N/A |
| Image Setting | Day & Night, Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Shutter Mode | Auto |
| Digital Noise Reduction | 3DNR |
| Image | |
| Video Compression | H.265/H.264 |
| Audio Compression | G.726 |
| Resolution | Mainstream: 4K (3840x2160) @15fps Substream: 720P (1280x720) |
| Bitrate Control | Fully Adaptive VBR |
| Interfaces | |
| Audio | Built-in Microphone and Speaker |
| Local Storage | Micro SD, up to 256GB |
| Network Storage | No |
| Reset/Pairing Button | Yes |
| Alarm | n/a |
| AI/AD | |
| Smart Motion Detection | PIR+Motion / PIR+Person |
| Active Deterrence | Siren, White Flood/Strobe |
| General | |
| Power Supply | DC5V |
| Power Consumption | Max 2.3W |
| Battery | 8700mAh, 3.7V, 32.19Wh Lithium Ion |
| Ingress Protection | IP67 |
| Dimensions (mm) | 100 x 70mm |
| Working Environment | Temperature: -20°C~ +50° (-4°F ~ 122°F) Humidity: Less than 90% RH |
| Weight | 700g |
| Material | Metal |
| NDAA and FCC-Compliant | Yes |
