Product Description
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/2.8", Progressive Scan, CMOS |
| Effective Pixels | 8MP 3840(H) × 2160(V) |
| Minimum Illumination | Color 0.02 Lux @ F1.6 (AGC ON); B/W 0 Lux @ IR ON |
| Lens Type / Focal Length | Fixed (M12) / 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 101°; Vertical: 53°; Diagonal: 120° |
| Minimum Object Distance | 2 m |
| IR LED | 1 |
| Warm Light | N/A |
| Red / Blue Light | N/A |
| IR Distance | 30 m |
| Warm Light Distance | N/A |
| Wide Dynamic Range | 120 dB |
| Image Mode | Day & Night / Schedule |
| White Balance | Auto / Manual |
| BLC / HLC | Yes |
| Electronic Shutter | 1/1 ~ 1/100000 s |
| Digital Noise Reduction | 3D DNR |
| Image | |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711a / G.711u |
| Resolution |
Main Stream: 8MP (3840 × 2160) @ 30 fps Sub Stream: 720P (1280 × 720) @ 30 fps Mobile Stream: D1 (720 × 480) @ 30 fps |
| Video Bitrate | 64 Kbps – 8 Mbps |
| Bitrate Control | CBR / VBR |
| Interfaces | |
| Network | RJ45 (10/100 Base-T) |
| Audio | Built-in Microphone |
| Local Storage | Micro SD, up to 256 GB |
| Network Storage | FTP |
| Reset Button | Yes |
| Alarm | N/A |
| AI / Analytics | |
| Smart Motion Detection | Perimeter Intrusion (Motion), Line Crossing |
| License Plate Recognition | No |
| Facial Recognition | No |
| Additional AI | Video Blur |
| Active Deterrence | No |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | SuperLive Plus |
| Network Protocols | UDP, IPv4, IPv6, TCP, RTCP, RTMP, PPPoE, 802.1x, UPnP, P2P, QoS, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS |
| Interface Protocol | ONVIF (Profile S / G / T) |
| ANR | No |
| Security | IP Address Filter, Complex Password, Authenticated User |
| Regions of Interest (ROI) | Yes |
| Corridor Mode | Yes |
| General | |
| Power Supply | DC 12V / PoE |
| Power Consumption | Max 7 W |
| PoE Standard | IEEE 802.3af |
| Ingress Protection | IP67 |
| Dimensions | 119 × 87.8 mm |
| Operating Environment |
Temperature: -30°C to +60°C (-22°F to 140°F) Humidity: <95% RH |
| Weight | 640 g |
| Material | Metal |
| Compliance | NDAA & FCC Compliant |
Product Videos
Custom Field

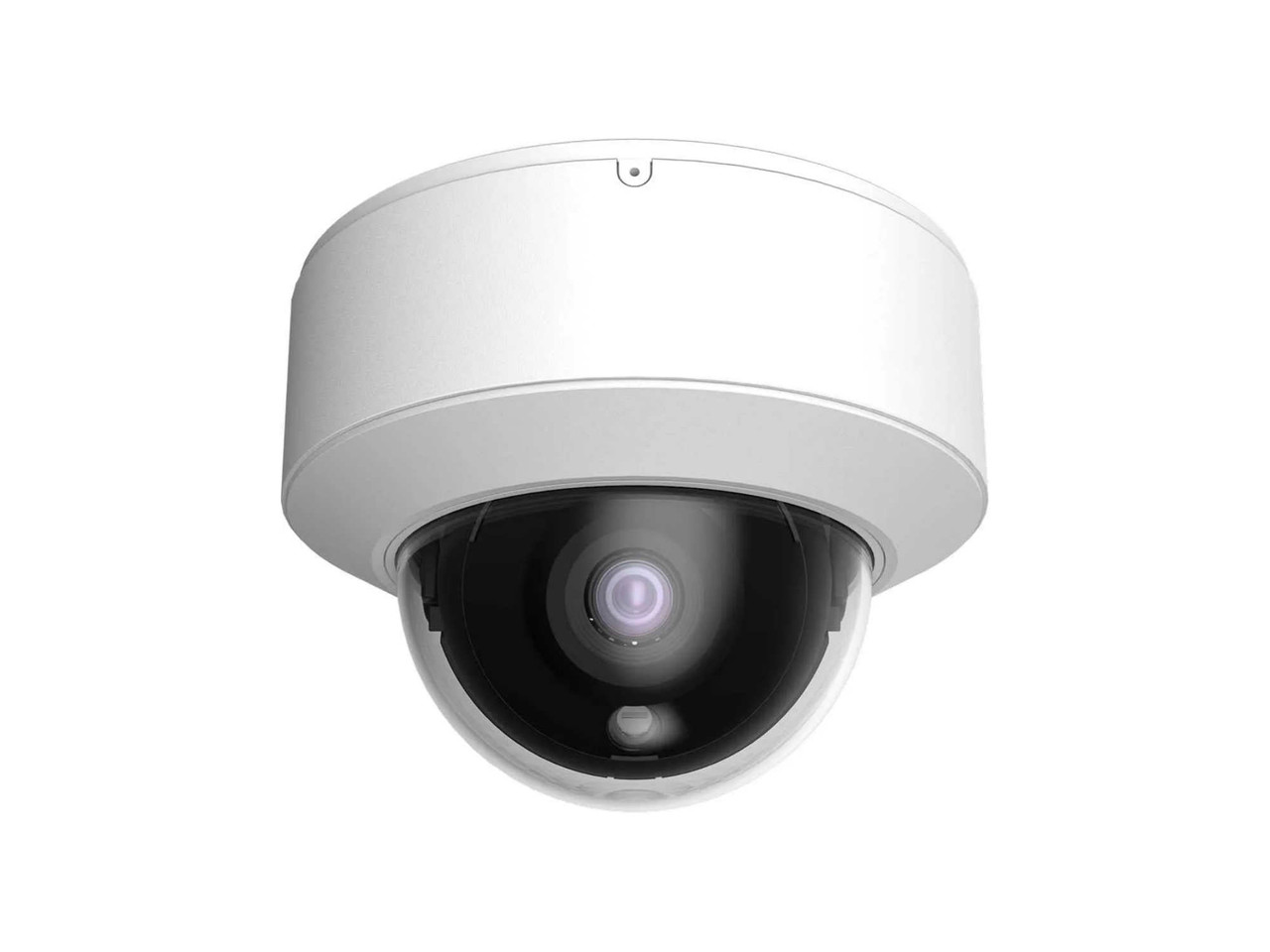

Style Vandal Dome
Resolution 8MP
Night Vision Infrared Black/White
Active Deterrence No
Audio Yes
Facial Recognition No
LPR No
Advanced AI No
FPS 30
Lens 2.8mm
WDR True 120dB
