Product Description
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/2.5", 5.0 Megapixel, Progressive Scan, CMOS |
| Effective Pixels | 5MP 2944(H)x1656(V) |
| Max Frame Rate | AHD/TVI/CVI: 5MP 20FPS, 4MP 30FPS CVBS: 960H |
| Video Output | BNC |
| Audio | No |
| Min. Illumination | Color 0.01Lux @F1.2(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | 2.8 - 12mm Motorized Zoom |
| Max Aperture Ratio | F1.2 |
| Angular Field of View | Horizontal: 24-85°, Vertical:14-55°, Diagonal: 28-93° |
| Min. Object Distance | 1.8m |
| Video Trans. Distance | Max 300M (RG6 Cable) |
| IR Distance | 50M |
| Remote Control | COC (Control Over Coax) |
| Reverse | No |
| Gain Control | Auto |
| Wide Dynamic Range | Digital WDR |
| Image Setting | Ext / Color / BW |
| White Balance | ATW |
| BLC | Off / Custom |
| Electronic Shutter Speed | Auto |
| Digital Noise Reduction | 2D DNR |
| General | |
| Power Supply | DC12V |
| Power Consumption | Max 6W (IR ON) |
| Ingress Protection | IP67 |
| Dimensions (mm) | 111.5 x 99.6mm |
| Working Environment | Temperature: -30°C~ +50° (-22°F ~ 122°F) Humidity: Less than 90% RH |
| Weight | 550g |
| Material | Metal |
| NDAA and FCC-Compliant | Yes |
Product Videos
Custom Field

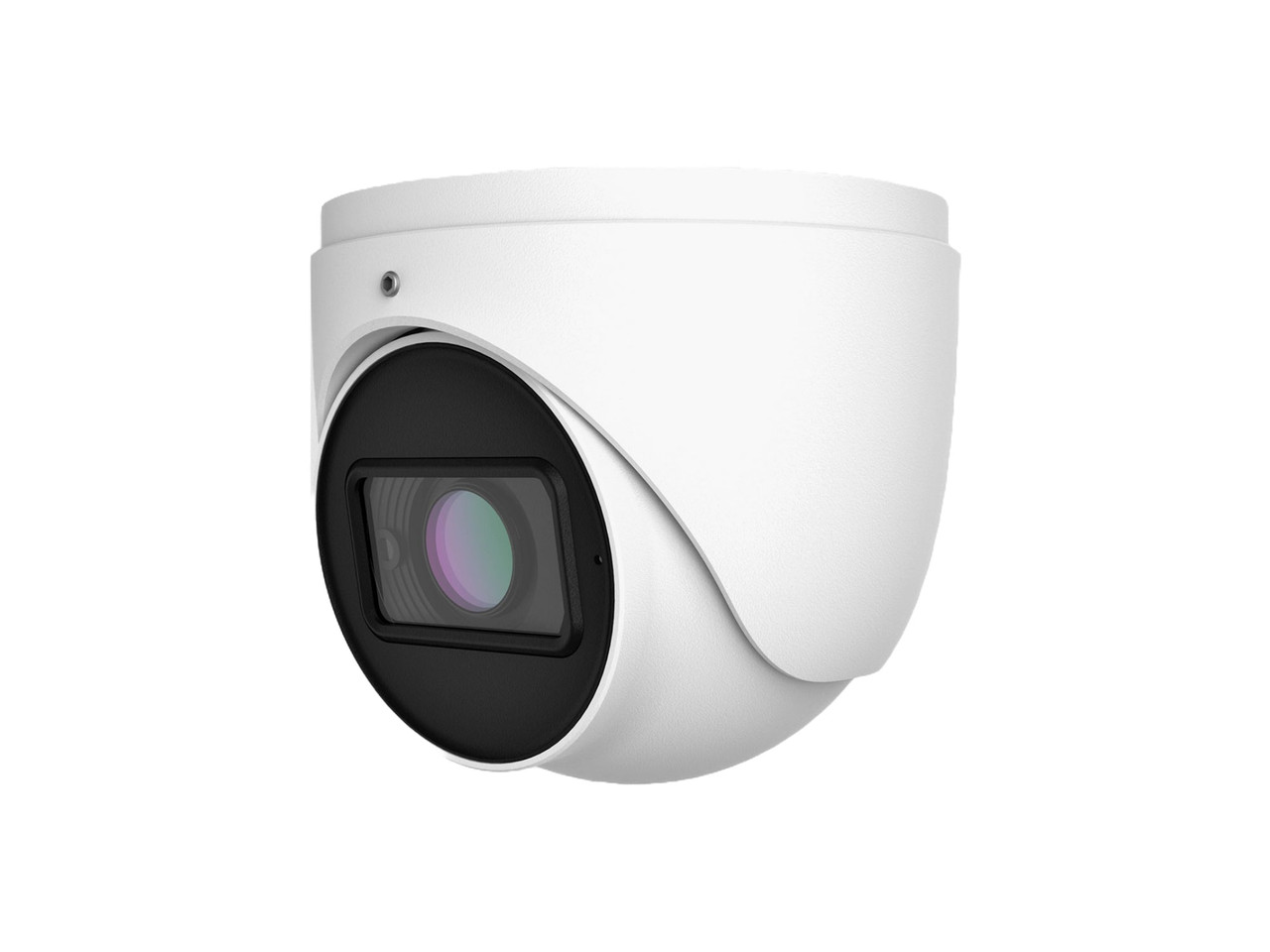

Style Turret
Resolution 5MP
Night Vision Infrared Black/White
Active Deterrence No
Audio No
Facial Recognition No
LPR No
Advanced AI No
FPS 20
Lens Motorized Varifocal
WDR DWDR
