Product Description

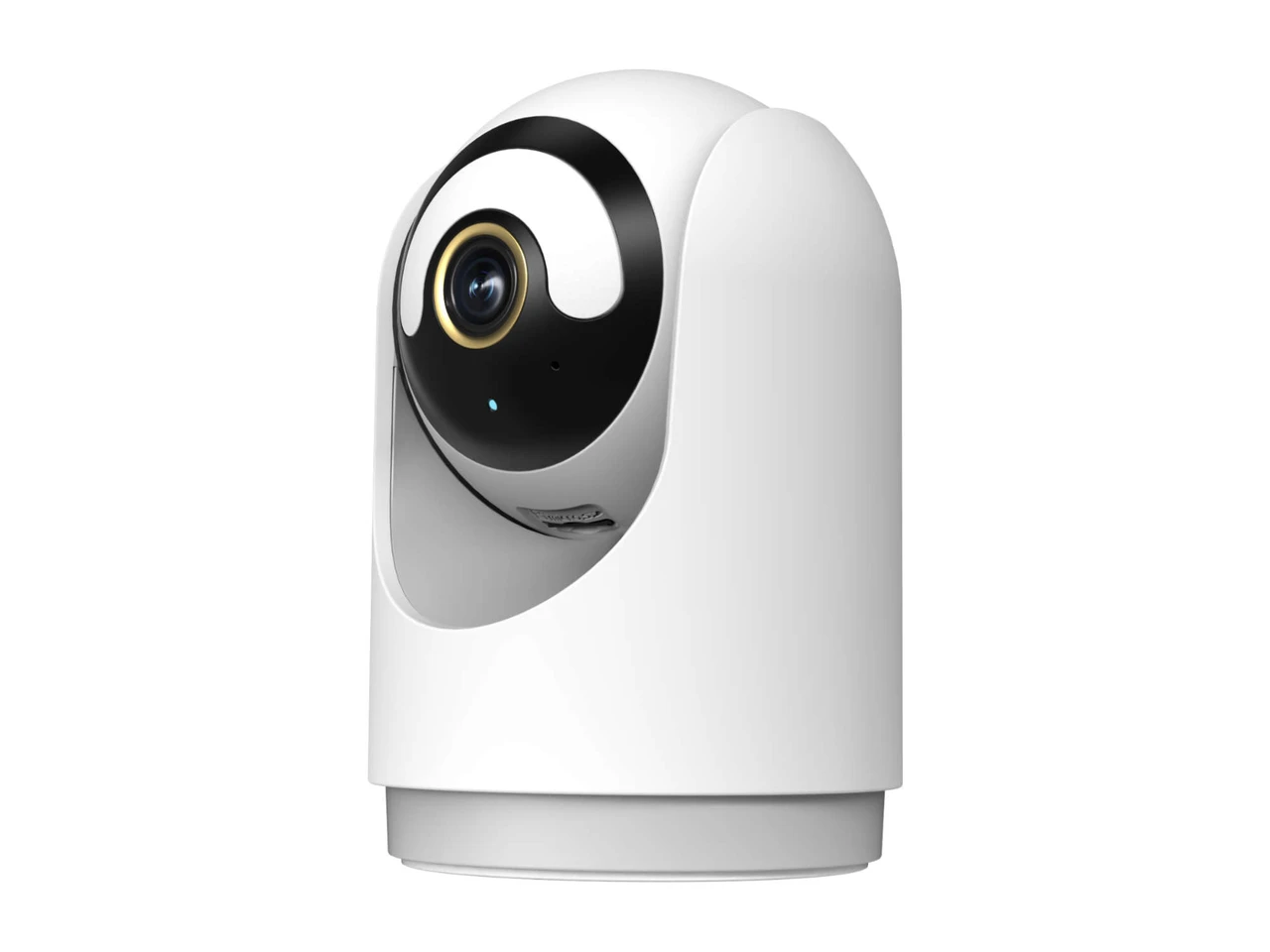

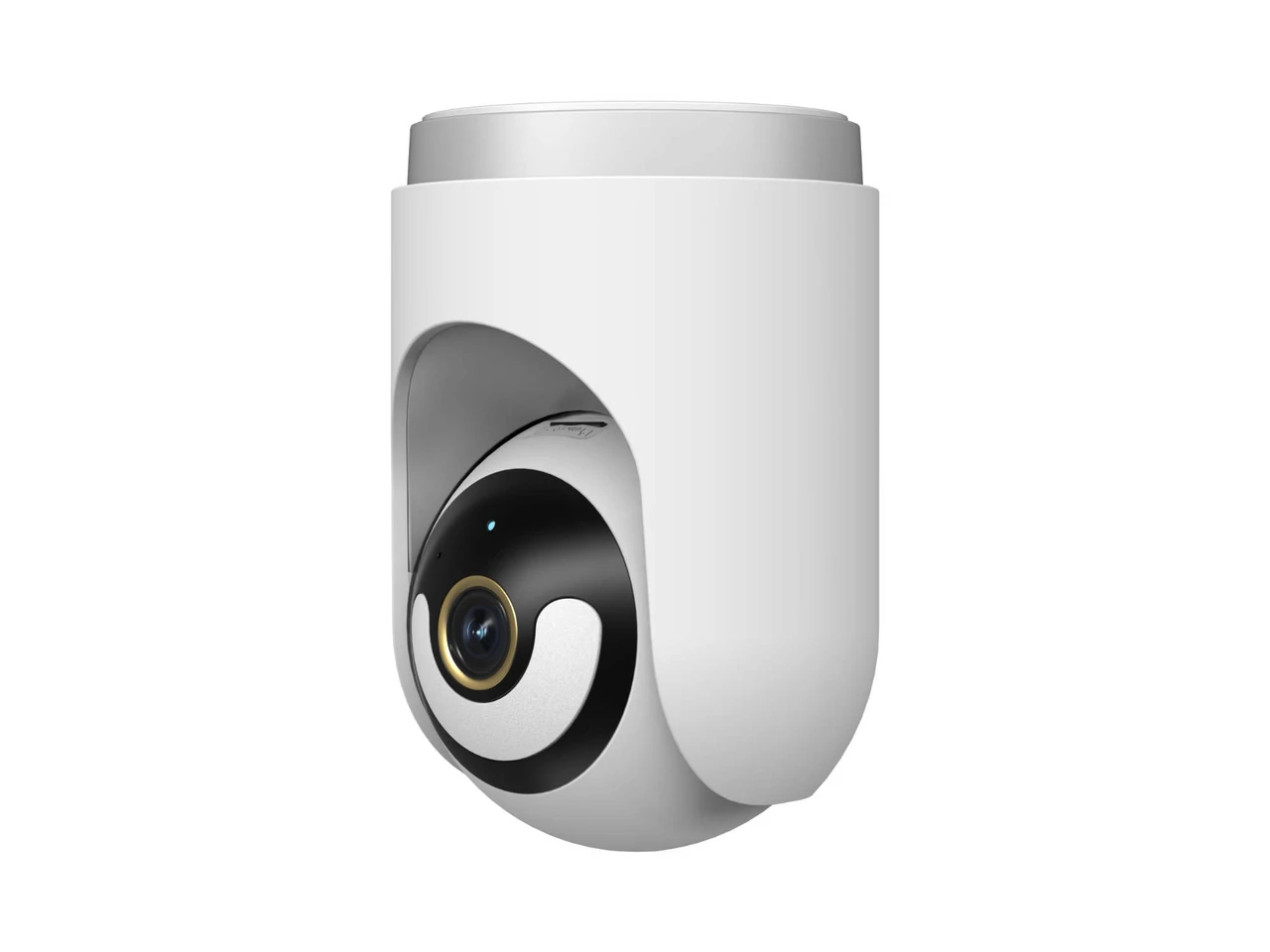

The XP-5PT-LM 5MP Smart Wi-Fi Camera delivers clear indoor monitoring with a wide 133.5° viewing angle, dual-band Wi-Fi 6 connectivity, Bluetooth, and built-in two-way audio.
It supports both color and black-and-white night vision, local microSD storage up to 1TB, and convenient USB Type-C connectivity. Intelligent AI features detect people, vehicles, and animals, while human tracking helps keep moving subjects in view. Baby Mode adds useful nursery-monitoring functionality, and Privacy Mode provides added control when surveillance is not needed.
As an X-Series product, it fully integrates with X-Series recorders, systems, and software, while ONVIF compatibility allows flexible integration with virtually any compatible NVR system.
- 5MP Resolution
- Wide 133° Viewing Angle
- AI: Human / Vehicle / Animal Detection, Human tracking
- Built-in Mic/Speaker, 2-Way Audio
- Wifi 6 (2.4G/5Ghz) and Bluetooth
- Full Color Night Vision
- SD Card up to 1TB
- Rotation angle: level 350°, vertical 110°
- Supports Baby Mode and Privacy Mode
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/2.7" 5.0MP Progressive Scan CMOS |
| Effective Pixels | 5MP (2880 × 1620) |
| Minimum Illumination | Color: 0.001 Lux @ F2.0 (AGC ON) / B&W: 0 Lux (IR ON) |
| Lens | Fixed (M12) / 2.8mm |
| Field of View | H: 110° / V: 58° / D: 133.5° |
| IR Distance | 10m |
| Warm Light Distance | 10m |
| Wide Dynamic Range | DWDR |
| Image & Video | |
| Video Compression | H.265 / H.264 |
| Resolution |
Main Stream: 5MP (2560 × 1440) @ 15fps Sub Stream: 720p (1280 × 720) @ 15fps |
| Bitrate Control | CBR / VBR |
| Interfaces | |
| Network | WiFi 6, 2.4GHz/5GHz |
| Audio | Built-in Microphone & Speaker |
| Local Storage | MicroSD (up to 1TB) |
| AI & Active Deterrence | |
| Smart Motion Detection | Human / Vehicle / Animal |
| Additional AI | Line Crossing, Loitering, Region Enter/Exit |
| Active Deterrence | Siren, Red/Blue Strobe, Custom Voice |
| General | |
| Power Supply | DC 12V |
| Power Consumption | Max 6.2W |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C to +55°C (-4°F to 131°F) |
| Compliance | NDAA & FCC Compliant |
