Product Description

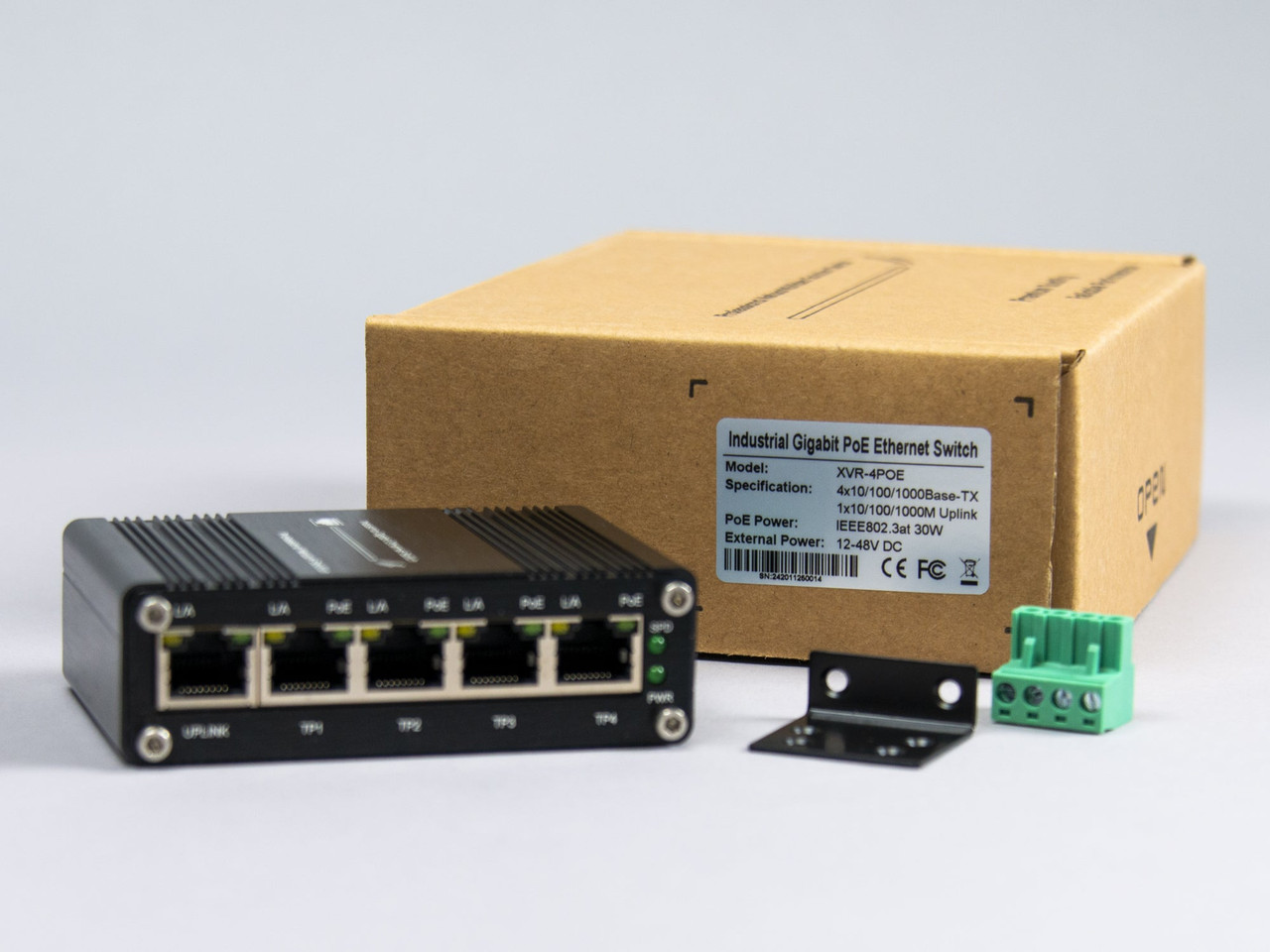

Introducing our Industrial 4-Port 12VDC PoE Ethernet Switch – a robust and useful solution engineered for rugged environments and high-performance networking. With four Power over Ethernet (PoE) ports, this switch delivers both data and power to your devices, minimizing the need for separate power supplies and simplifying installation. It takes a wide range of DC input voltage and outputs 44-57 VDC for all compatible 802.3af/at PoE/PoE+ devices. It’s designed to operate in extreme temperature conditions, with a wide temperature range, ensuring reliability in harsh industrial settings, whether it’s high heat or freezing cold.Equipped with 802.3az Energy Efficient Ethernet (EEE) support, the switch optimizes power consumption without compromising on performance, making it an eco-friendly choice for industrial applications.
The compact and durable design ensures long-term stability, providing a robust solution for connecting surveillance cameras, access points, and other IP devices in factories, warehouses, and outdoor installations.

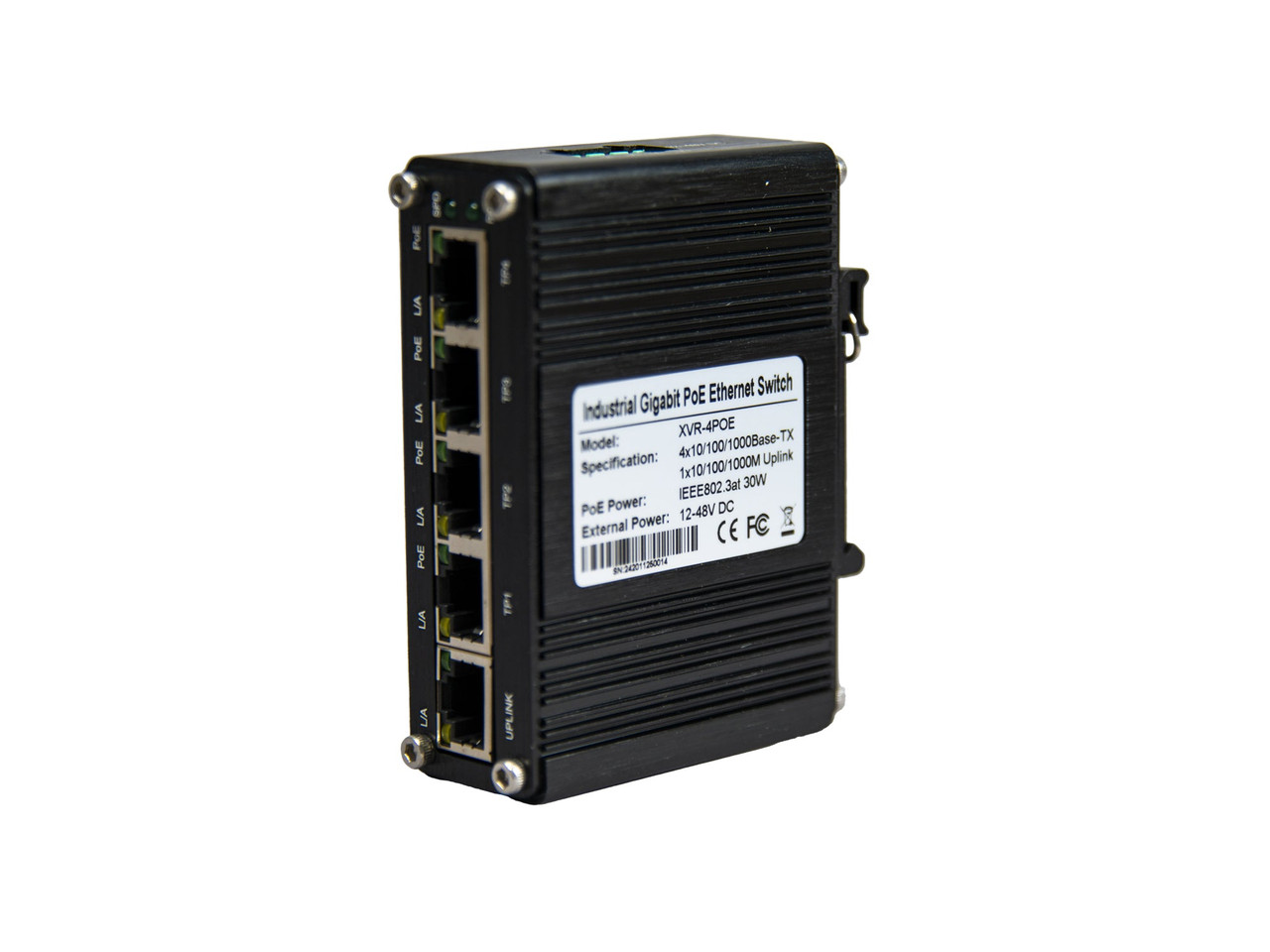

The Switch is DIN-Rail mountable and highly versatile, operating on 12V DC is a huge benefit for installers and low-voltage integrators.
This switch is built to deliver consistent, reliable performance in your most demanding industrial networking applications.
*Power supply not included
Specifications
| Networking Switch |
|
|---|---|
| Standards : | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus |
| Forward and Filtering Rate: | 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) |
| Packet Buffer | 1 Mbit |
| Packet Length | 10k bytes |
| Mac Address Table | 8K |
| Switch Fabric | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20 Gbps Packet Forwarding Rate: 14.88 Mbps |
| Connector | 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 4 Ports with 802.3at PoE+ (Ports 1-4) |
| PoE - Power over Ethernet | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment : | 1/2(+), 3/6(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC(Terminal Block) |
| Power Consumption: | <125W (Non-PoE: <6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity | Present |
| Dimensions | 95mm x 70mm x 29mm |
| Weight | 0.25Kg / .5 Lbs |
| Case | Aluminum |
| Mounting | DIN-Rail and Wall mount |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | >200,000 hrs |
| LED Indicators | |
| PWR | Power |
| L/A | Link / Activity |
| SPD | Data Rate |
| Regulatory Certifications | ISO9001 EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55032:2017 IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
