Product Description

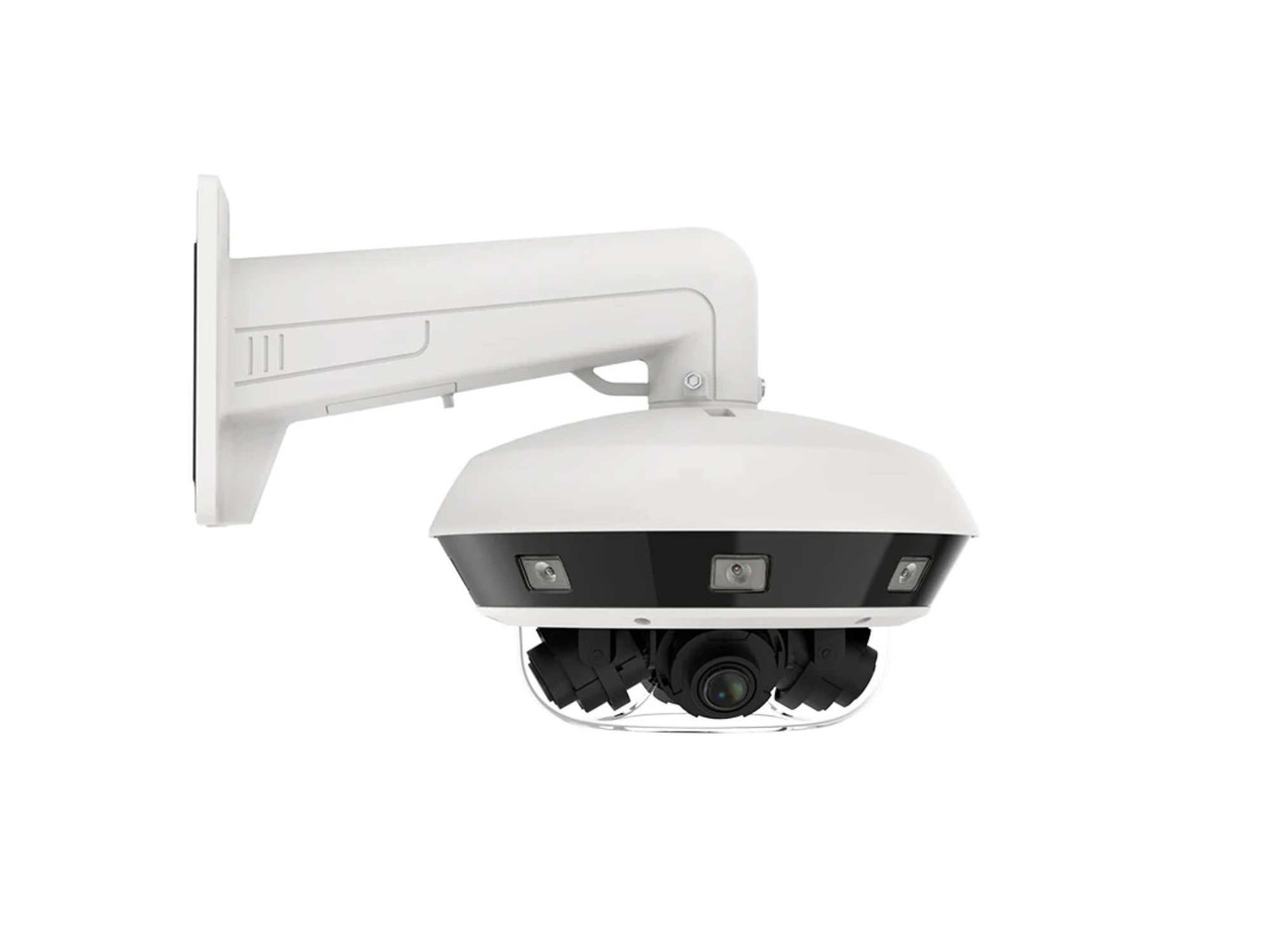

Introducing the X-Series XP-PANO-4S. Our 360° Panoramic, 8MP, 4K Multi-Sensor Camera with Active Deterrence, Full Color Night Vision, and Advanced AI.
With its 4 independently adjustable 2.8-12mm motorized zoom lenses, this camera is capable of capturing an extensive 360° field of view, eliminating any potential blind spots in your surveillance coverage. Its 4K WDR high-resolution image sensors ensure that every detail is captured in crystal-clear quality, delivering sharp and vivid footage in any lighting condition. Thanks to its advanced full-color night vision technology, you can see everything in vivid detail even in complete darkness, providing you with unparalleled clarity and peace of mind.
- 4 Adjustable Motorized Zoom Lenses
- 4 Channel Stream Output, each channel 4K @ 25fps
- 4 Channel Starlight and 120dB WDR
- All-In-One Design, One IP, Multi-Channel, Multiple Use
- AI Functions of 4 Channels Enabled Simultaneously
- Built-in Dual Source Illuminator (IR and White Light)
- H.265/H.264 Video Compression
- Advanced AI (Facial Recognition, License Plate Recognition, Person/Vehicle, Perimeter, Line Crossing, Cross Counting, Stationary Object, Heat Map, Crowd Density, Queue Length, Region Entrance/Exit)
- Active Deterrence (White Warning Lights)
- Full Color Night Vision / IR Selectable
- True 120dB Wide Dynamic Range
- Dropbox Cloud Support
- FTP Network Storage
- DDNS
- Micro SD Slot (up to 256GB)
- ONVIF Compatible
- AC24V/DC12V/PoE++ Power
- IP67 Waterproof Rating
- IK10 Vandal Proof
- NDAA and FCC Compliant
Specifications
| Camera | |
|---|---|
| Imaging Device | 1/1.8", 8.0 Megapixel, Progressive Scan, CMOS |
| Effective Pixels | 8MP 3840(H)x2160(V) |
| Min. Illumination | Color 0.006Lux @F1.2(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | 2.8 - 12mm, Motorized Zoom |
| Max Aperture Ratio | F1.30 |
| Angular Field of View | Horizontal: 48-112°, Vertical: 27-58°, Diagonal: 55-138° |
| Min. Object Distance | 1.5m |
| IR Distance | 30m |
| Warm Light Distance | 15m |
| Wide Dynamic Range | True WDR |
| Image Setting | Full Color Mode / Day&Night / Schedule |
| White Balance | Auto/Manual |
| BLC/HLC | Yes |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Digital Noise Reduction | 3D DNR |
| Image | |
| Video Compression | H.265+/H.264+/H.265/H.264 |
| Audio Compression | G.711a, G.711u |
| Resolution | Mainstream: 8MP (38400x2160) @25fps Substream: 720P (1280x720) @25fps |
| Video Quality Adjustment | 8Kbps - 16Mbps |
| Bitrate Control | CBR/VBR |

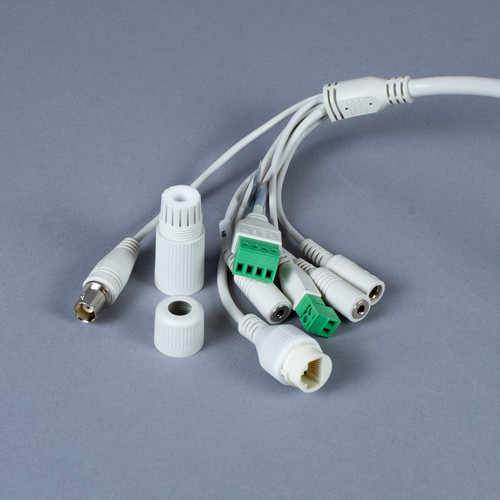

| Interfaces | |
| Network | RJ45 (10/100 Base-T) |
| Audio | 1 input (RCA), 1 output (RCA) |
| Local Storage | Micro SD, up to 256GB |
| Network Storage | FTP |
| Reset Button | Yes |
| Alarm | 2 inputs, 2 outputs |
| AI/AD | |
| Smart Motion Detection | Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing |
| License Plate Recognition | Yes |
| Facial Recognition | Yes |
| Additional AI | Cross Counting, Stationary Object Detection, Heat Map, Crowd Density, Queue Depth, Region Enter/Exit |
| Active Deterrence | Flashing White Lights |
| Functions | |
| Remote Monitoring | Web Browser, Client VMS, Mobile App |
| Mobile App | XMV |
| Network Protocol | IPv4, IPv6, TCP, UDP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS, FTP, PPPoE, UPnP, SNMP, |
| Interface Protocol | ONVIF (Profile S/G/T) |
| ANR | Yes |
| Security | IP Address Filter, Complex Password, Authenticated User |
| Regions of Interest (ROI) | Yes |
| Corridor Mode | Yes |
| General | |
| Power Supply | AC24V/DC12V/POE++ |
| Power Consumption | Max 43W |
| PoE | Yes, 802.3bt |
| Ingress Protection | IP67 |
| Dimensions (mm) | 300 x 195mm |
| Working Environment | Temperature: -30°C~ +55° (-22°F ~ 131°F) Humidity: Less than 95% RH |
| Weight | 4.6kg |
| Material | Metal |
| NDAA and FCC-Compliant | Yes |
Product Videos
Custom Field
Style Panoramic/Multi
Resolution 32MP
Night Vision Full Color
Active Deterrence Yes
Audio No
Facial Recognition Yes
LPR Yes
Advanced AI Yes
FPS 25
Lens Motorized Varifocal
WDR True 120dB
