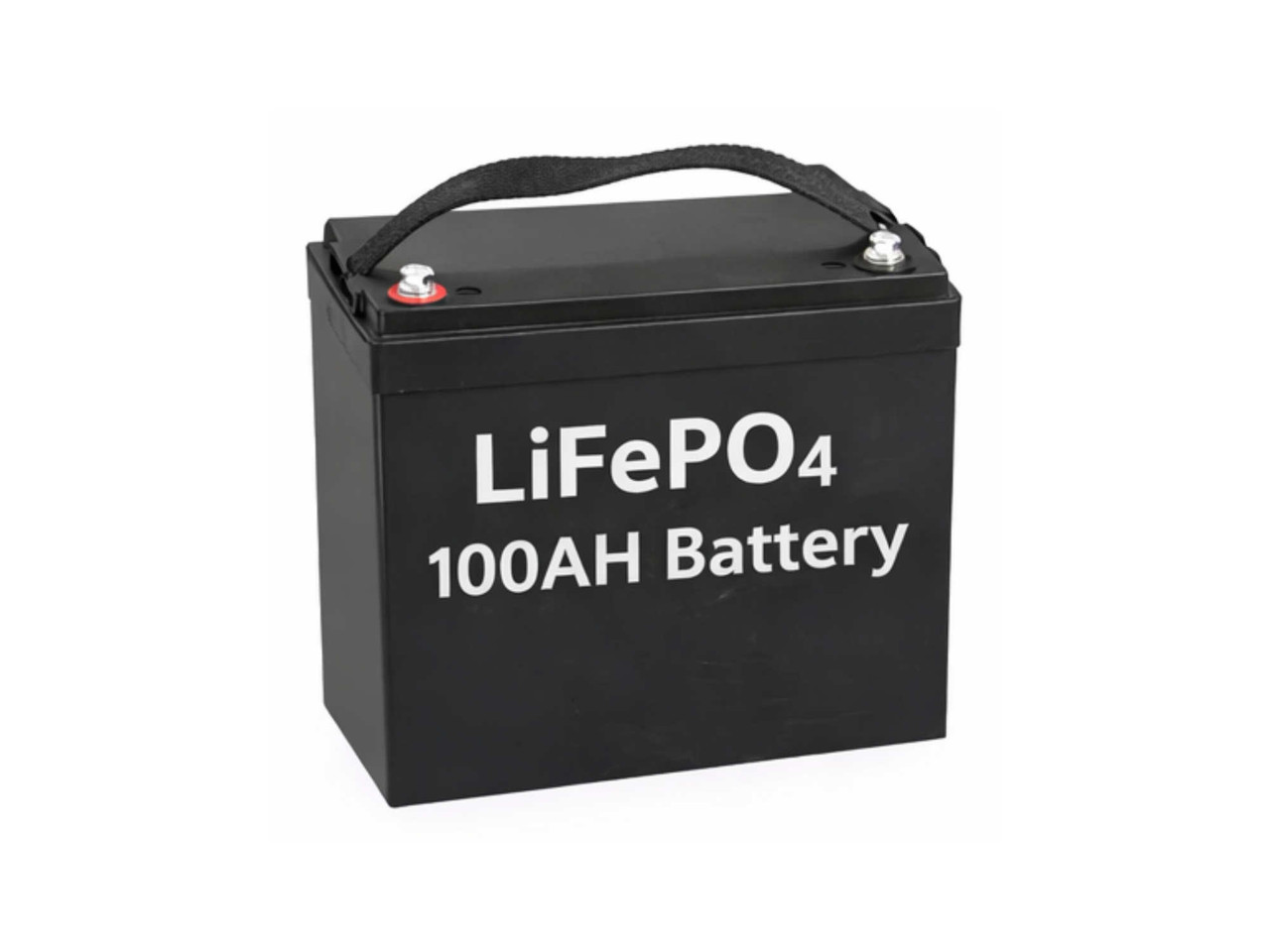

Product Description
| BATTERY | |
|---|---|
| Cell Type | LiFePO4 |
| Warranty | 5 Years |
| Cycle Life | 4000 @100% DOD, 6000 @80%, 15,000 @60% DOD |
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Energy | 1280Wh |
| Max. Expansion | 4P4S |
| Internal Resistance | ≤40mΩ |
| Certifications | UL, FCC, CE, RoHS, UN38.3 |
| ABYC Official Cert | Yes |
| Bluetooth | No |
| Self-Heating | No |
| BMS | |
| BMS Rating | 100A |
| Max Cont. Output | 1280W |
| Max. Cont. Charge | 100A |
| Max Cont. Discharge | 100A |
| Max Discharge 5 Sec | 250A |
| CHARGE | |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommended Charge | 20A (0.2C) |
| TEMPERATURE | |
| Charge Temperature | 0°C to 50°C / 32°F to 122°F |
| Discharge Temperature | -20°C to 60°C / -4°F to 140°F |
| Storage Temperature | -10°C to 50°C / 14°F to 122°F |
| Low-Temp Protection | No |
| OTHERS | |
| Terminals | M8 Bolts |
| Weight Approx. | 19 lbs. |
| Size | 10.24 x 5.24 x 8.96 in. |
| Housing Material | ABS |
| Protection Class | IP65 |
