Product Description
This feature rich XVRTM is LOADED with functions and can be used to either transform an existing analog system into a smart recording platform or be used as an NVR with IP cameras.Specifications
| Video | |
|---|---|
| Max Inputs | 12 (Combination of Analog and IP) |
| Analog Inputs | 8 BNC |
| Max IP Inputs | 12 |
| Analog Camera Input Resolution | 8MP (15FPS), 5MP (20FPS), 4MP and lower (30FPS) |
| IP Camera Input Resolution | 8MP/4MP/1080P/720P (30FPS) |
| Incoming Bandwdith | 88 Mbps |
| Outgoing Bandwidth | 88 Mbps |
| Output | 1 x HDMI (Max 3840x2160), 1 x VGA (Max 1920x1080), 1 x BNC (max 704x576) |
| Compression | H.265, H.264 |
| Streams | 2 - Mainstream, Substream |
| Audio | |
| Network Input | 12 Channels |
| Local Input | RCA x 8 |
| Local Output | RCA x 1, HDMI |
| Compression | G.711a |

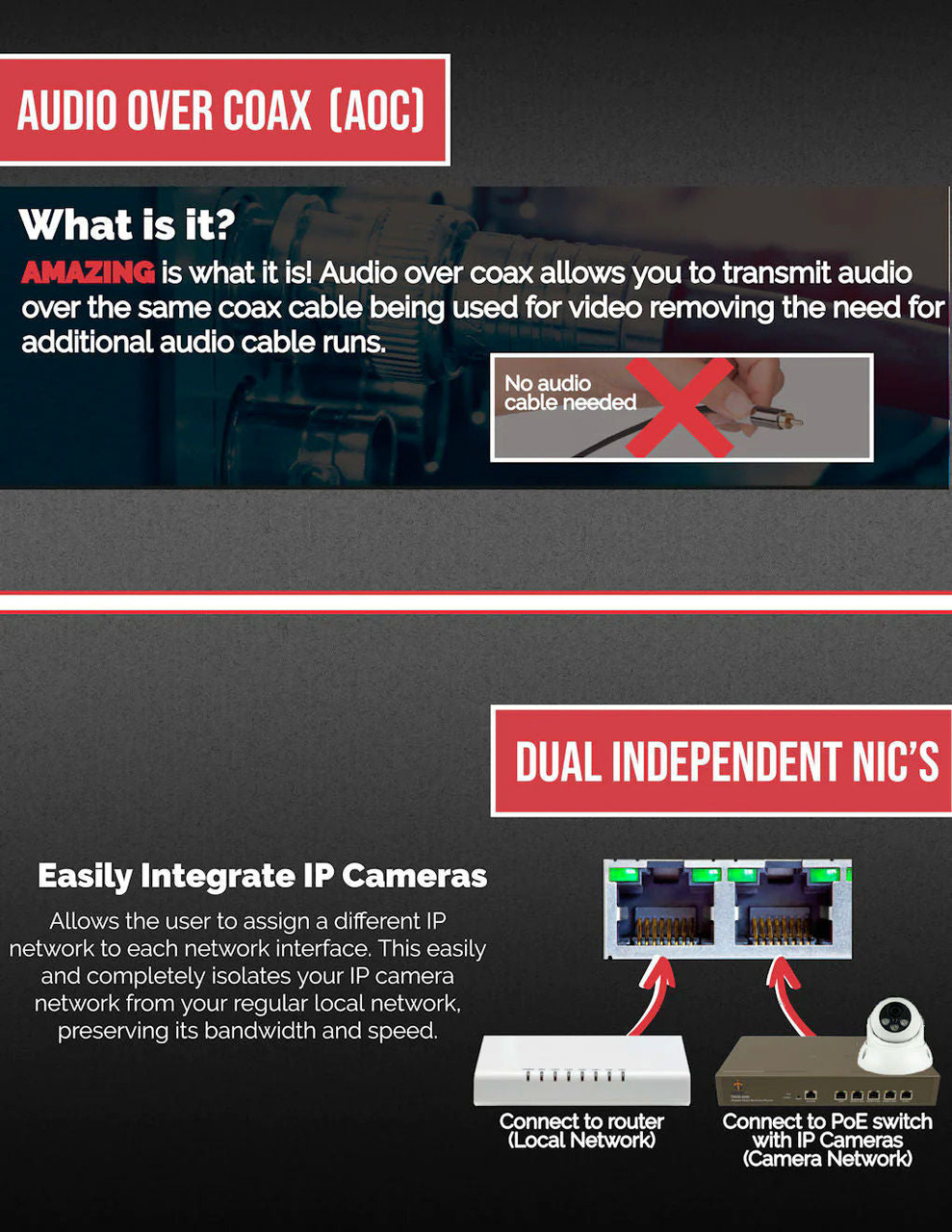

| Audio over Coax | Yes (with X-Series HD Analog Cameras) |
| Record | |
| Analog Resolution | 8MP (10FPS), 5MP (14FPS), 4MP (18FPS), 2MP and lower (30FPS) |
| IP Resolution | 8MP/4MP/1080P/720P (30FPS) |
| Max Channel FPS | 30 FPS (camera dependent) |
| Playback | |
| Simultaneous Playback | 8-ch |
| Search | Time Slice / Time / Event / Tag Search / Smart Search / Al |
| Function | Play, Pause, FF/FB (2/4/8/16x), Slow Forward (1/2, 1/4, 1/8, 1/16x), Single Frame Step |
| Frame Rate | 8MP: 72FPS, 5MP: 112 FPS, 4MP: 144FPS, 2MP: 240FPS |
| Alarm | |
| Mode | Manual, Sensor, Motion, Exception, Al Events |
| Input | 8 Physical Inputs, Supports IP Camera Alarm Input |
| Output | 1 Physical Output, Supports IP Camera Alarm Output |
| Action | Record, Message, Push Notification, Email, FTP Image/Video upload, Cloud Image/Video upload, Voice Alert |
| AI | |
| XVR-Provided (Any Analog Cam) | PID - Perimeter Intrusion Detection LCD - Line Crossing Detection PD&VD - Pedestrian and Vehicle FD - Facial Detection< |
| IPC-Provided (X-Series IP Cams Only) | LPR, Facial, Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing, Cross Counting, Heat Map, Crowd Density, Queue Depth, Rare Sound, Abandoned/Missing Object, Video Tampering, Region Enter/Exit |
| Functions | |
| Active Deterrence Support | Yes (Camera Dependent) |
| Fisheye Dewarp | No (Dewarp available on the X-VMS software or Mobile App) |
| Cloud Storage | Google Drive / Dropbox |
| Voice Assist | Amazon Alexa/Echo, Google Chromecast |
| Regions of Interest (ROI) | Yes (Camera Dependent) |
| Protocols |
TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, HTTP, HTTPs, FTP, RTP, RTSP, NTP, SMTP, UDP, ONVIF, RTMP
|
| Other | Live Stream to Youtube.com |
| Mobile Device/VMS | |
| OS | Android, iOS |
| App | XMV |
| P2P Easy Setup | Yes |
| PC Software | X-VMS |
| Primary Storage | |
| HDD Interface | SATA x 2 (up to 16 TB drives) |
| E-SATA | Yes |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Disk Groups | No |
| Backup | |
| Local Backup | USB Flash, USB HDD |
| Network Backup | VMS, Cloud, NAS |
| Connections | |
| USB | 1 x USB 2.0 (front), 1 x USB 3.0 (rear) |
| RS485 | Yes |
| Ethernet | 2 x RJ-45 10/100/1000 Base-T |
| PoE | |
| PoE Ports | None |
| Standards | n/a |
| Output Power | n/a |
| General | |
| Power Supply | 12V, 5A |
| Power Consumption | 11 W (without HDD) |
| Dimensions (mm) | 380 x 340 x 50 |
| Working Environment | Temperature: -10°C~ +50° (14°F ~ 122°F) Humidity: Less than 90% RH |
| NDAA-Compliant | Yes |
