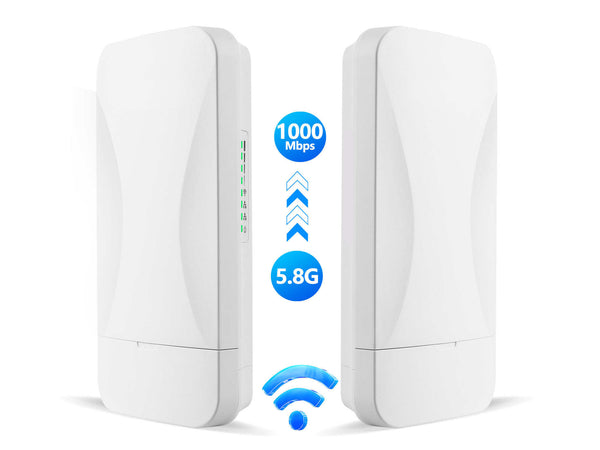

XVR-5HSB-P: Plug 'n Play Gigabit 3KM Long Range 5GHz Wireless Bridge (2-Pack)

XVR
$270.00
$270.00
$0
Sold out
Quantity must be 1 or more
36 units in stock

Fast & Secure Checkout

Description

  • Description
  • Specification
  • Documents

  • Feature Highlights

    - Over 3KM Wifi Bridging Distance
    - Powerful 15dBi High Gain Antenna
    - Dual 1 Gbps Network Ports
    - Up To 900 Mbps Real Throughput
    - Pre-Paired, No Setup Required
    - Instant 1 to 8 Point-to-Multipoint Setup
    - Access Point and Bridging Mode Simultaneous Operation
    - 12VDC / 48V Active PoE powered
    - Horizontal: 60°, Vertical: 30°
    - IP65 Weatherproof and 4kV Lightning Protection

    The XVR-5HSB-P is the ultimate solution for seamless long-range wireless connectivity, offering reliable performance over distances beyond 3 kilometers. Ideal for outdoor use, this durable bridge supports high-speed 802.11ac 5GHz WiFi with speeds up to 900Mbps (actual throughput, not just data rate) , ensuring smooth data transfer for all your wireless networking needs. For CCTV applications, this unit can stream multiple real-time 30fps 4K IP cameras from over 9000 feet away.

    Featuring instant pairing, setup is a breeze, allowing you to quickly establish a secure connection without complicated configurations. These units come pre-paired for point-to-point applications. Point-to-multipoint configuration couldn't be easier. Simply flip the switch to M on the master bridge and flip the switch to S for all the client bridges, then press the reset button for 1 second on all the bridges to have them sync with each other. This unit is even more versatile by supporting access point mode while bridging. This allows you to connect a wired or wireless client device to the XVR-5HSB-P to bridge data across the 5Ghz wireless link. Many WiFi bridges on the market today do not allow wireless devices to access the bridge, but ours does seamlessly.

    This unit is also an 802.3af active PoE powered device. Meaning, the bridge will get its power and data through any 802.3af compliant PoE switch with power on pins 1/2+ and 3/6-.

    This unit is uncompromised in ensuring versatility and power efficiency. Whether you're extending WiFi to remote areas, providing off-grid 12VDC systems or connecting multiple buildings, this WiFi bridge delivers high-performance results in a rugged, reliable package.

    Perfect for business, home, or industrial use, the XVR-5HSB-P brings fast, secure wireless coverage to hard-to-reach areas with ease.



  • General
    Wireless 802.11 a/n/ac, 900 Mbps
    Memory 128MB RAM
    Flash 16MB
    Interfaces 1 x 10/100/1000 Mbps RJ45 WAN Port (48V PoE)
    1 x 10/100/1000 Mbps RJ45 LAN Port
    1 x Master/Slave Switch
    1 x 12VDC Power Input
    1 x Reset Button (10 second press for factory default, 2 second press for pairing)
    Antenna 5.8GHz 15 dBi Dual Polarization High Gain Directional
    LED Light SYS, WAN/POE, LAN, WIFI, Signal Strength
    RF Data
    RF Data 5.150 GHz - 5.850 GHz
    Data Rate 867 Mbps
    5G TX Power 802.11a (54M: 22±2dBm, 6M: 25±2dBm )
    802.11n HT20 (MCS7: 22±2dBm, MCS0: 25±2dBm)
    802.11n HT40 (MCS7: 22±2dBm, MCS0: 25±2dBm)
    802.11ac VHT20 (MCS9: 20±2dBm, MCS0: 23±2dBm)
    802.11ac VHT40 (MCS9: 20±2dBm, MCS0: 23±2dBm)
    802.11ac VHT80 (MCS9: 19±2dBm, MCS0: 22±2dBm)
    Receive Sensitivity 802.11a (54M: -73dBm, 6M: -90dBm )
    802.11n HT20 (MCS7: -72dBm, MCS0: -90dBm)
    802.11n HT40 (MCS7: -69dBm, MCS0: -87dBm)
    802.11ac VHT20 (MCS9: -67dBm, MCS0: -90dBm)
    802.11ac VHT40 (MCS9: -62dBm, MCS0: -87dBm)
    802.11ac VHT80 (MCS9: -59dBm, MCS0: -84dBm)
    EVM 802.11a_54 ≤ -25 dB; 802.11n_MCS7: ≤ -28dB; 802.11ac_MCS9: ≤ -32dB
    PPM 20ppm
    Operational
    Modes AP Mode and Bridge Mode
    PTMP 1 to 8 Point-to-MultiPoint Support
    Wireless Encryption Open, WPA, WPA2, WPA-PSK, WPA2-PSK
    Mac Filter Yes (32 whitelist)
    User Isolation Wireless Network Isolation, AP Isolation
    Max Clients 64
    System Config Web-Based Configuration
    Firmware Upgrade Web-Based Upgrade
    Logs Local Logs, Export
    Reset Reset or Factory Defaults
    Backup Restore Settings/Config of Device to Local File
    Features VLAN, DHCP Server, Hide SSID, 4 SSID, RF Adjustable
    Electrical and Mechanical
    Input Power: POE: Active POE 48V/0.2A
    DC In: 12VDC 1A
    Power Consumption Less Than 10W
    Dimensions 168mm x 86mm x 42.5mm
    Case ABS Plastic
    Environmental
    Operating Temp -20°C to 55°C (-4°F to 131°F)
    Storage Temp -40°C to 70°C (-40°F to 158°F)
    Relative Humidity 5% to 95% non-condensing
    Water Protection IP65
    Lightning Protection 4 KV
