Feature Highlights
- Over 1KM Wifi Bridging Distance
- Powerful 11dBi High Gain Antenna
- Pre-Paired, No Setup Required
- Instant 1 to 8 Point-to-Multipoint Setup
- Access Point and Bridging Mode Simultaneous Operation
- Horizontal: 60°, Vertical: 30°
- 12VDC / 24V Passive PoE
- IP65 Weatherproof and 4kV Lightning Protection

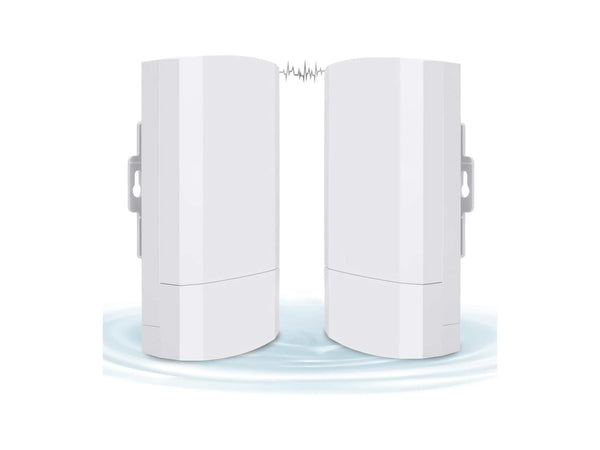

The XVR-24HSB is the ultimate solution for seamless long-range wireless connectivity, offering reliable performance over distances beyond 1 kilometer. Ideal for outdoor use, this durable bridge supports high-speed 2.4GHz WiFi with speeds up to 300Mbps, ensuring smooth data transfer for all your wireless networking needs. For CCTV applications, this unit can stream a real-time 30fps 4K IP camera from over 3000 feet away.Featuring instant pairing, setup is a breeze, allowing you to quickly establish a secure connection without complicated configurations. These units come pre-paired for point-to-point applications. Point-to-multipoint configuration couldn't be easier. Simply flip the switch to M on the master bridge and flip the switch to S for all the client bridges, then press the reset button for 1 second on all the bridges to have them sync with each other. This unit is even more versatile by supporting access point mode while bridging. This allows you to connect a wired or wireless client device to the XVR-24HSB to bridge data across the wireless link. Many WiFi bridges on the market today do not allow wireless devices to access the bridge, but ours does seamlessly.
Again, with versatility, you can power this unit from either the included 24V Passive PoE or 12VDC power (adapter included).
This unit is uncompromised in ensuring versatility and power efficiency. Whether you're extending WiFi to remote areas, providing off-grid 12VDC systems or connecting multiple buildings, this WiFi bridge delivers high-performance results in a rugged, reliable package.
Perfect for business, home, or industrial use, the XVR-24HSB brings fast, secure wireless coverage to hard-to-reach areas with ease.
*For POE, please note this is a 24V passive device and the included PoE injector should be used to power it. It won't work with a 48V PoE switch unless a 3rd party converter is used.
*24V POE Injector Included. 12VDC Power Supply Included.
-
General
Wireless 802.11 b/g/n, 300 Mbps Memory 64MB RAM Flash 8MB Interfaces 1 x 10/100Mbps RJ45 WAN Port
1 x 10/100Mbps RJ45 LAN Port
1 x Master/Slave Switch
1 x 12VDC Power Input
1 x Reset Button (10 second press for factory default, 1 second press for pairing)Antenna 2.4GHz 11 dBi Dual Polarized High Gain Directional LED Light SYS, WAN/POE, LAN, WIFI, Signal Strength RF Data RF Data 2.412 GHz - 2.484 GHz Data Rate 300 Mbps 2.4G TX Power 802.11b [11M: 18±2dBm)
802.11g (54M: 17±2dBm)
802.11n HT20 (MCS7: 16±2dBm)
802.11n HT40 (MCS7: 15±2dBm)Receive Sensitivity 802.11b [11M: -85dBm, 1M: -94dBm)
802.11g (54M: -72dBm, 6M: -88dBm)
802.11n HT20 (MCS7: -68dBm, MCS0: -86dBm)
802.11n HT40 (MCS7: -66dBm, MCS0: -85dBm)EVM 802.11b ≤ -10 dB; 802.11g: ≤ -25dB; 802.11n: ≤ -28dB PPM 20ppm Operational Modes AP Mode and Bridge Mode PTMP 1 to 8 Point-to-MultiPoint Support Wireless Encryption Open, WPA, WPA2, WPA-PSK, WPA2-PSK Mac Filter Yes (32 whitelist) User Isolation Wireless Network Isolation, AP Isolation Max Clients 64 System Config Web-Based Configuration Firmware Upgrade Web-Based Upgrade Logs Local Logs, Export Reset Reset or Factory Defaults Backup Restore Settings/Config of Device to Local File Electrical and Mechanical Input Power: POE: Passive POE 24V/0.5A
DC In: 12VDC 1APower Consumption Less Than 12W Dimensions 168mm x 86mm x 39mm Case ABS Plastic Environmental Operating Temp -20°C to 55°C (-4°F to 131°F) Storage Temp -40°C to 70°C (-40°F to 158°F) Relative Humidity 5% to 95% non-condensing Water Protection IP65 Lightning Protection 4 KV -
