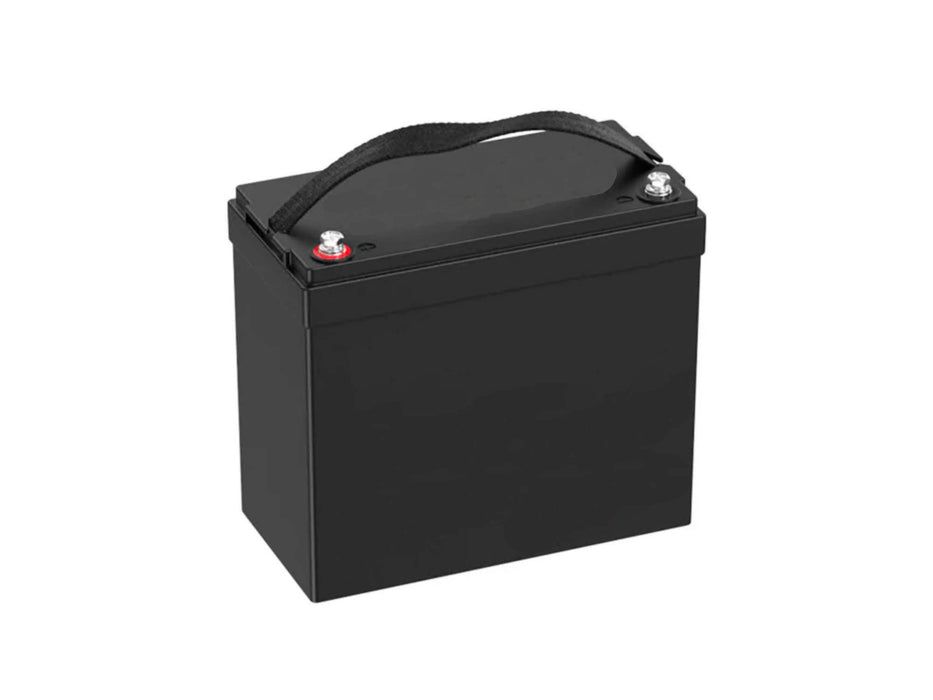

OG-LT12V100-B: 12V 100Ah Mini Battery w/ Environmental Bag

OG-LT12V100-B: 12V 100Ah Mini Battery w/ Environmental Bag

by XVR
Without Heat With Heat
$359.00 - $359.00
$359.00
$359.00 - $359.00
$359.00
  • Description
  • BATTERY
    Cell Type LiFePO4
    Warranty 5 Years
    Cycle Life 4000 @100% DOD, 6000 @80%, 15,000 @60% DOD
    Nominal Voltage 12.8V
    Rated Capacity 100Ah
    Energy 1280Wh
    Max. Expansion 4P4S
    Internal Resistance ≤40mΩ
    Certifications UL, FCC, CE, RoHS, UN38.3
    ABYC Official Cert Yes
    Bluetooth No
    Self-Heating No
    BMS
    BMS Rating 100A
    Max Cont. Output 1280W
    Max. Cont. Charge  100A
    Max Cont. Discharge 100A
    Max Discharge 5 Sec 250A
    CHARGE
    Charge Method CC/CV
    Charge Voltage 14.4V ± 0.2V
    Recommended Charge 20A (0.2C)
    TEMPERATURE
    Charge Temperature 0°C to 50°C / 32°F to 122°F
    Discharge Temperature -20°C to 60°C / -4°F to 140°F
    Storage Temperature -10°C to 50°C / 14°F to 122°F
    Low-Temp Protection No
    OTHERS
    Terminals M8 Bolts
    Weight Approx. 19 lbs.
    Size 10.24 x 5.24 x 8.96 in.
    Housing Material ABS
    Protection Class IP65
