Introducing the XVRTM 8MP HD Analog Bullet CCTV Camera with Wide Dynamic Range (WDR) – a surveillance solution that sets new standards in clarity, precision, and adaptability. Designed to enhance your security system, this advanced camera delivers unparalleled visual insights for both residential and commercial settings.
Key Features:
8MP HD Clarity: Experience crystal-clear imagery like never before. Our 8-megapixel high-definition resolution ensures that every detail is captured in vivid and sharp quality, enabling you to closely monitor activities in your space.
Wide Dynamic Range (WDR): Say goodbye to overexposed or underexposed areas in your footage. The WDR technology integrated into this camera optimizes exposure levels, providing balanced visuals even in challenging lighting conditions. Whether it's bright sunlight or dimly lit corners, you can count on consistent image quality.
Quad Format Compatibility: Experience unparalleled convenience with our 4-in-1 HD CCTV Camera. Designed to support TVI, CVI, AHD, and CVBS analog signal formats, this camera eliminates the need for choosing between different technologies. Seamlessly switch between modes with ease. Enjoy the freedom to integrate it into your existing surveillance system, regardless of the format your system utilizes.
Day-Night Performance: Security doesn't take a break, and neither should your camera. Equipped with advanced day-night functionality, this CCTV camera delivers exceptional performance in varying lighting conditions. Experience clear images during both daylight hours and nighttime surveillance.
Wide-Angle Coverage: With a wide-angle 2.8mm lens, this camera provides extensive coverage, reducing blind spots and ensuring a comprehensive view of your space. Keep every corner under surveillance without the need for multiple cameras.
Robust Build: Crafted with durability in mind, this camera is built to withstand varying weather conditions. Its rugged construction ensures reliable performance in outdoor environments, making it a suitable choice for both indoor and outdoor installations.
Effortless Installation: Installing our camera is hassle-free. With user-friendly mounting options and simple connectivity, you can quickly integrate it into your existing security system. Our comprehensive installation guide ensures a smooth setup process.
Stay ahead of the curve and invest in a solution that ensures your security system remains future-proof and incredibly versatile.

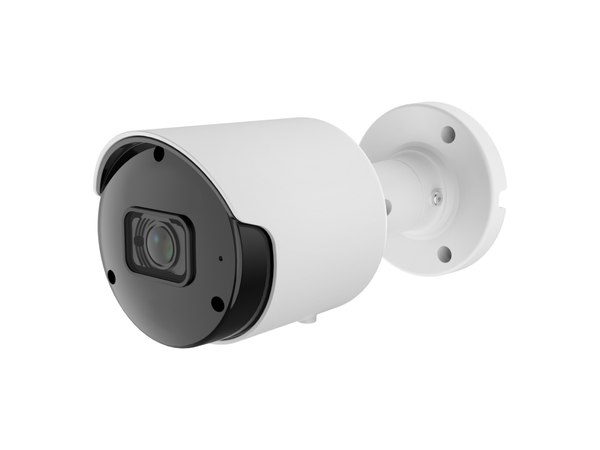

8MP IR Fixed Lens HD Analog Bullet Camera w/WDR
- 1/2.7” CMOS Image Sensor
- 8MP@15fps (TVI/AHD/CVI) Encoding
- 2.8mm Fixed Lens
- WDR
- Infrared Night Vision
- AHD, TVI, CVI and CVBS Video Signals
- Up to 30m (98’) IR distance
- On Screen Display Menu
- IP66 Ingress Protection Rating
- NDAA Compliant
-
Camera Imaging Device 1/2.7", 8.0 Megapixel, Progressive Scan, CMOS Effective Pixels 8MP 3840(H)x2160V) Max Frame Rate AHD/TVI/CVI: 15fps, CVBS: 960H Video Output BNC Min. Illumination Color 0.06Lux @F1.6(AGC ON); B/W 0 lux @ IR ON Lens Type/Focal Length Fixed(M12)/ 2.8mm Max Aperture Ratio F1.6 Angular Field of View Horizontal:111°, Vertical:59°, Diagonal: 134° Min. Object Distance 1.8m Video Trans. Distance Max 300M (RG6 Cable) IR Distance 30M Remote Control ACP (AHD Coax Protocol) Reverse Mirror Gain Control Auto Wide Dynamic Range WDR Image Setting Ext / Color / BW White Balance ATW BLC Off / Custom Electronic Shutter Speed Auto Digital Noise Reduction 3D DNR General Power Supply DC12V Power Consumption Max 4W (IR ON) Ingress Protection IP66 Dimensions (mm) 5.93" x 2.8" Working Environment Temperature: -30°C~ +55° (-22°F ~ 131°F) Humidity: Less than 90% RH Material Metal NDAA and FCC-Compliant Yes
