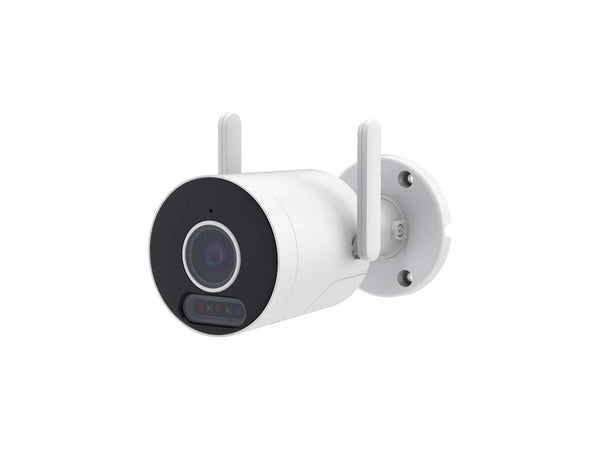

Introducing the X-Series XP-4AD-FB-W. A 4MP WiFi IP camera with ONVIF, active deterrence, and full compatibility with X-Series NVR/XVR.
With a 4 megapixel high-definition resolution, this camera captures crystal-clear footage in both day and night, allowing you to monitor your property 24/7. Thanks to its advanced full-color night vision technology, you can see everything in vivid detail even in complete darkness, providing you with unparalleled clarity and peace of mind.
But that's not all - this security camera also features Active Deterrence, a cutting-edge technology that helps prevent intruders from even approaching your property. Equipped with a built-in siren and flashing red/blue lights, this camera can be configured to automatically trigger an alarm and deter potential intruders when motion is detected.
The camera is also equipped with SMD (Smart Motion Detection) technology, which is able to distinguish between humans, vehicles, and animals, significantly reducing false alarms. This feature also allows you to customize the camera's motion detection sensitivity to ensure you only receive alerts for important events. Other AI features include Line Crossing, Loitering detection, and Perimeter detection.
Easy to install and configure using the mobile app, this 2.4GHz wifi camera is suitable for both indoor and outdoor use and comes with a durable all weather housing that can withstand harsh weather conditions.
- 1/3" 4.0 Megapixel, Progressive Scan, CMOS Sensor
- 4MP (2560 x 1440) @25FPS Encoding
- H.265/H.264 Video Compression
- 2.4GHz WiFi Supported
- Smart Motion Detection
- Active Deterrence (Red/Blue Warning Lights, Siren, Custom Voice)
- Full Color Night Vision / IR Selectable
- Audio, Built-in Mic and Speaker
- 2.8mm Fixed Lens
- Dual-Stream Recording
- DDNS
- Micro SD Slot (up to 512GB)
- ONVIF Compatible
- DC12V/PoE Power
- IP66 Waterproof Rating
- NDAA and FCC Compliant
-
Camera Imaging Device 1/3", 4.0 Megapixel, Progressive Scan, CMOS Effective Pixels 4MP 2560(H)x1440(V) Min. Illumination Color 0.002Lux @F1.0(AGC ON); B/W 0 lux @ IR ON Lens Type/Focal Length Fixed(M12)/ 2.8mm Max Aperture Ratio F1.6 Angular Field of View Horizontal:95°, Vertical:51°, Diagonal: 112° Min. Object Distance 2m IR LED 1 Warm Light 1 Red/Blue Light 2 (1 Red, 1 Blue) IR Distance 25m Warm Light Distance 20m Wide Dynamic Range DWDR Image Setting Full Color Mode / Day&Night / Schedule White Balance Auto/Manual BLC/HLC Yes Electronic Shutter Speed 1/5 ~ 1/20000s Digital Noise Reduction 3D DNR Image Video Compression H.265/H.264 Audio Compression G.711a Resolution Mainstream: 4MP (2560x1440) @25fps
Substream: 720P (1280x720) @25fpsVideo Quality Adjustment 256Kbps - 4Mbps Bitrate Control CBR/VBR Interfaces Network 2.4GHz Wifi Audio Built-in Microphone and Speaker Local Storage Micro SD, up to 512GB Network Storage No Reset Button Yes Alarm n/a AI/AD Smart Motion Detection Pedestrian/Vehicle/Animal, Perimeter Intrusion (Person/Vehicle), Line Crossing License Plate Recognition No Facial Recognition No Additional AI Sound Volume, Loitering, Region Enter/Exit Active Deterrence Siren, Red/Blue Strobe, Custom Voice Functions Remote Monitoring Web Browser, Client VMS, Mobile App Mobile App XVM Plus Cloud Service Yes Network Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS Interface Protocol ONVIF (Profile S/G/T) ANR Yes Security Complex Password, Authenticated User Regions of Interest (ROI) No Corridor Mode No General Power Supply DC12V Power Consumption Max 6.2W PoE No Ingress Protection IP66 Dimensions (mm) 100 x 70mm Working Environment Temperature: -20°C~ +55° (-4°F ~ 131°F) Humidity: Less than 90% RH Weight 282g Material Metal & Plastic NDAA and FCC-Compliant Yes -
