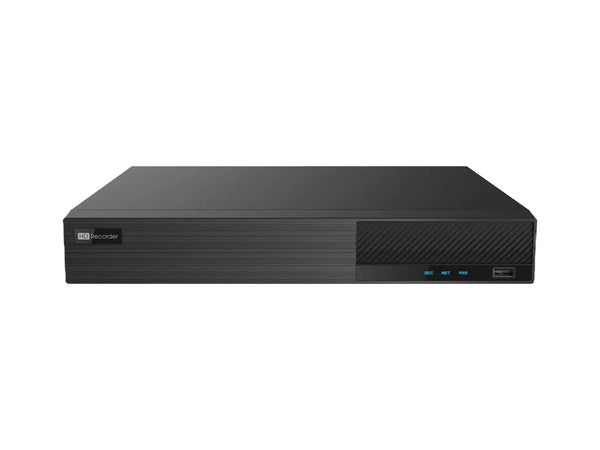

FX-4KNVR216N-P-V2: 16ch 8MP 144Mbps PoE NVR

FLUX
$638.00
$638.00
$0
Sold out
Quantity must be 1 or more

Fast & Secure Checkout

Description

  • Description
  • Specification
  • Downloads
    • 16 Channels of IP Cameras, up to 4K @ 30FPS All Channels
    • Smart Motion Detection (Human, Vehicle, Perimeter, Line Crossing, etc.)
    • AI Analytics (Facial, Vehicle, License Plate)
    • 144 Mbps Input Bandwidth
    • 16 Plug-n-Play PoE Ports
    • H.265S/H.265+/H.265/H.264 Video Compression
    • P2P Remote Access w/ Mobile App or Client Software via QR Code
    • Browser-based Remote Access
    • 4K HDMI Video Display Output
    • 10/100/1000 Network Interface
    • DDNS Support
    • NDAA Compliant


  • Video
    Camera Inputs 16 CH IPC input
    Camera Input Resolution 8MP, 6MP, 5MP, 3MP, 2MP(1080P), 1280x1024, 1.3MP(960P), 1.0MP(720P), 960H, D1, CIF
    Incoming Bandwidth 144 Mbps
    Outgoing Bandwidth 144 Mbps
    Output HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768
    VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
    Compression H.265S, H.265+, H.265, H.264
    Streams 2 - Mainstream, Substream
    Audio
    Network Input 16 Channels
    Local Input RCA × 1 (for two-way audio)
    Local Output RCA x 1, HDMI
    Compression G.711a/u
    Record
    Resolution 8MP, 6MP, 5MP, 3MP, 2MP(1080P), 1280x1024, 1.3MP(960P), 1.0MP(720P), 960H, D1, CIF
    Max Channel FPS 30 FPS (camera dependent)
    Max Channels at 4K@30FPS 16-ch
    Playback
    Simultaneous Playback 16-ch
    Search Time Slice / Time / Event / Tag Search / Smart Search / Al
    Function Play, Pause, FF/FB
    Frame Rate 8MP: 30FPS, 4MP: 60FPS, 2MP: 180FPS
    Alarm
    Mode Manual, Sensor, Motion, Exception, Al Events
    Input Supports IP Camera Alarm Input
    Output Supports IP Camera Alarm Output
    Action Record, Message, Push Notification, Email
    Functions
    Plate Recognition
    		 Yes (If using Flux IP Cameras capable of LPR)
    Facial Recognition
    		 Yes (If using Flux IP Cameras capable of Facial)
    Additional Al

    Pedestrian, Vehicle, Perimeter Intrusion, Line Crossing, Object abandoned/missing
    Face Detection
    Performance
    (AI by IPC)    		 16 CH
    Fisheye Dewarp Via VMS Software, Mobile App, or Web Interface only
    Cloud Storage No
    Voice Assist No
    Regions of Interest (ROI) Yes
    Other n/a
    Mobile Device/VMS
    OS Android, iOS
    App SuperLive Plus
    P2P Easy Setup Yes
    PC Software Flux VMS
    Primary Storage
    HDD Interface SATA 3.0 x 2 (up to 12 TB drives)
    E-SATA No
    Network Storage No
    Disk Groups No
    Backup
    Local Backup USB Flash, USB HDD
    Network Backup VMS
    Connections
    USB 2 x USB 2.0
    RS485 No
    Ethernet 1 x RJ-45 10/100/1000M Base-T
    PoE
    PoE Ports 100M RJ45 × 16
    Standards IEEE 802.3af/at
    Output Power ≤ 150W
    General
    Power Supply DC 48V/3.75A
    Power Consumption 10 W (without HDD)
    Dimensions (mm) 380 × 268× 45 ( W × D × H )
    Working Environment Temperature: -10°C~ +50° (14°F ~ 122°F) Humidity: Less than 90% RH
    Certificate CE, FCC

  • Access the full Knowledge Base for NVR by clicking here

    Specification Sheet
